PROCESS

  1. Home>
  2. PROCESS

STAINLESS STEEL COIL SLITTING

Learn More

STAINLESS STEEL SHEET CUTTING

Learn More

STAINLESS STEEL COIL/SHEET IMEAS POLISHING

Learn More

STAINLESS STEEL COIL SLITTING

Learn More

STAINLESS STEEL SHEET CUTTING

Learn More

STAINLESS STEEL COIL/SHEET IMEAS POLISHING

Learn More

STAINLESS STEEL COIL SLITTING

Previous
Next

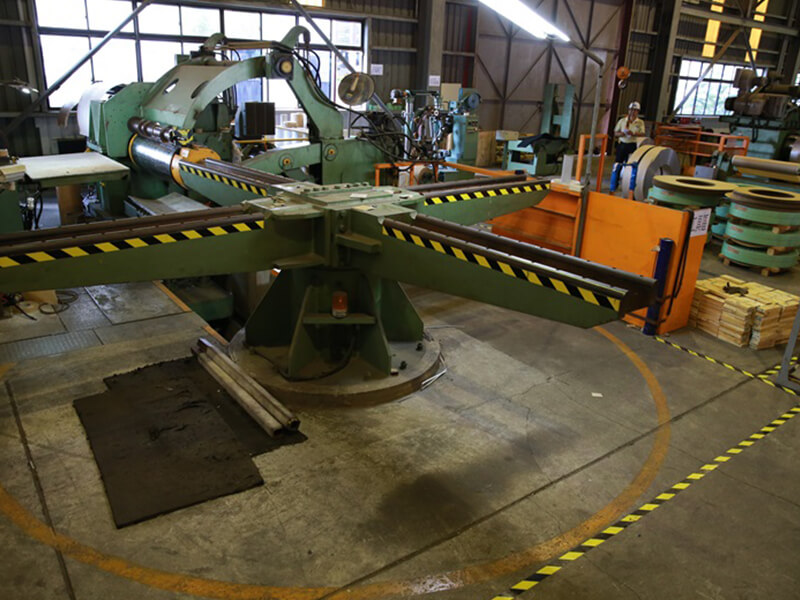

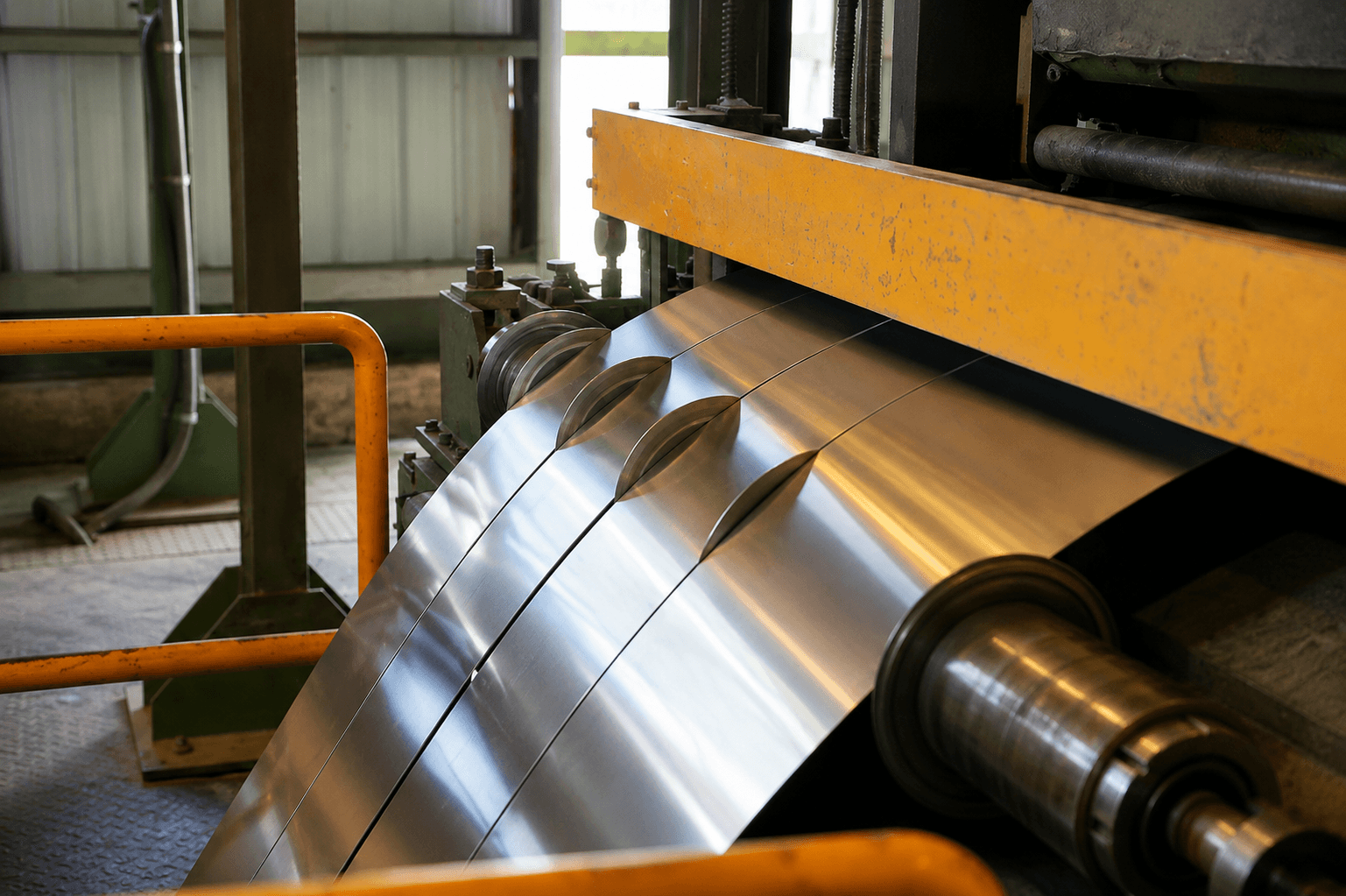

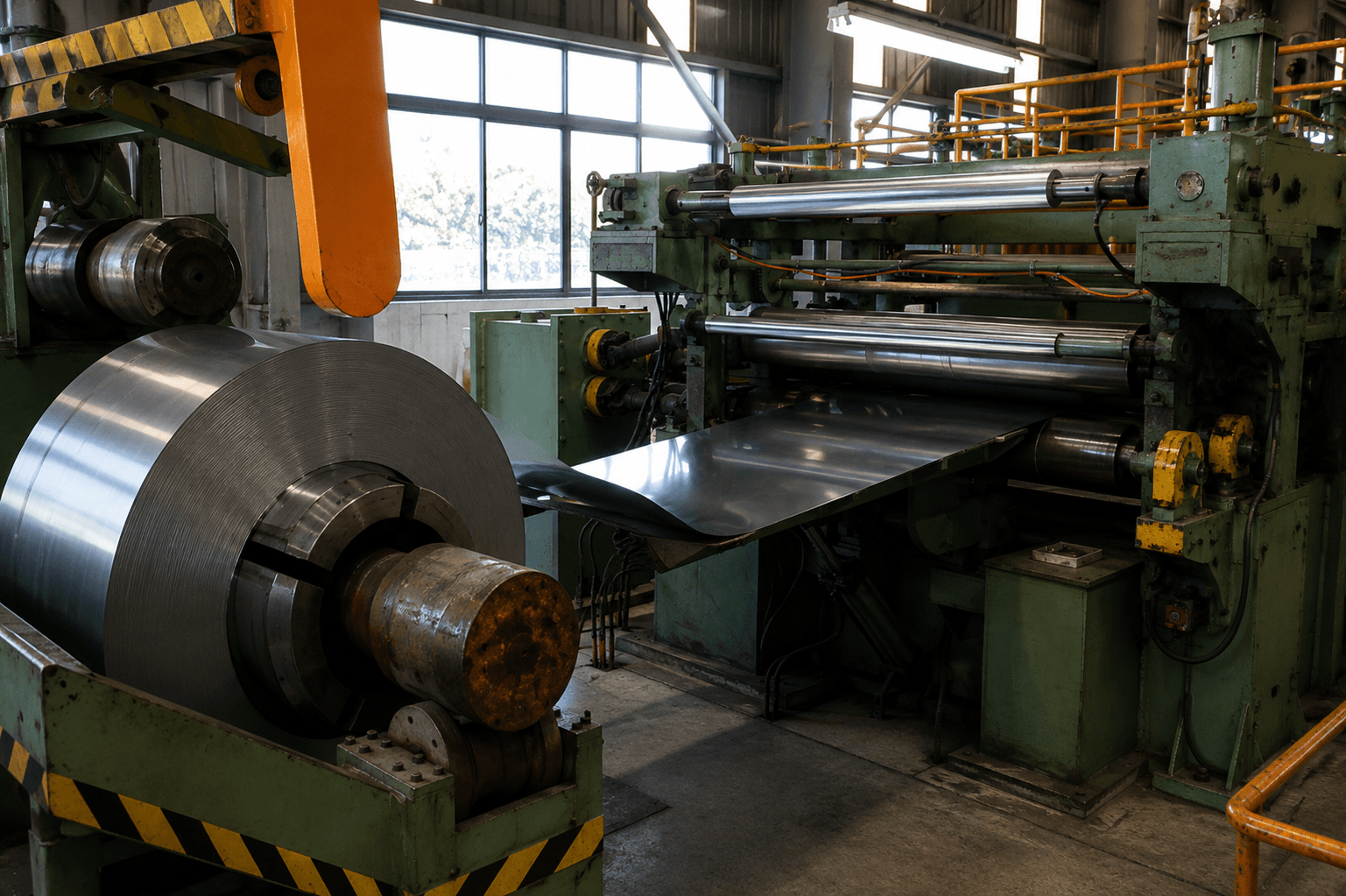

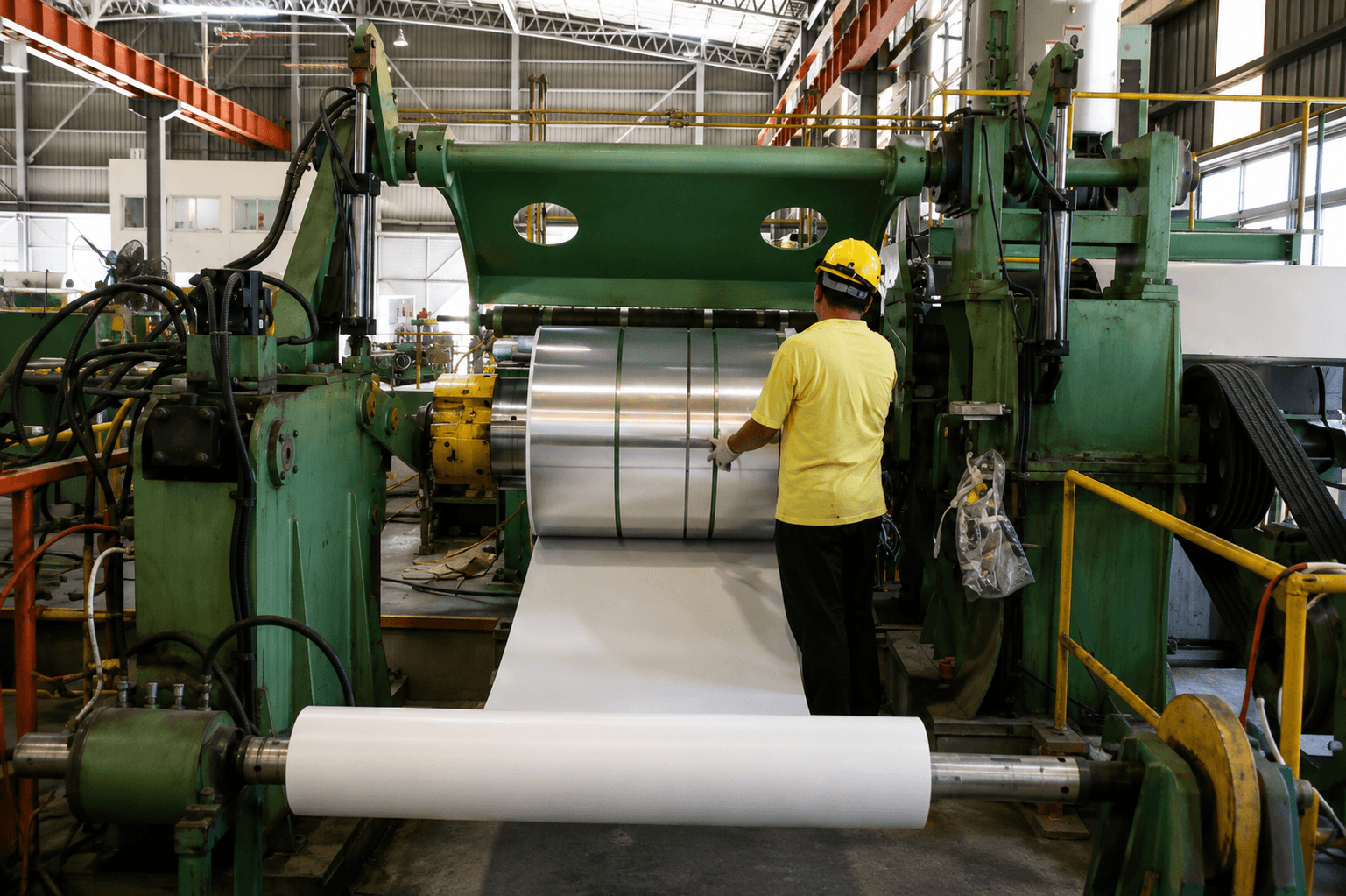

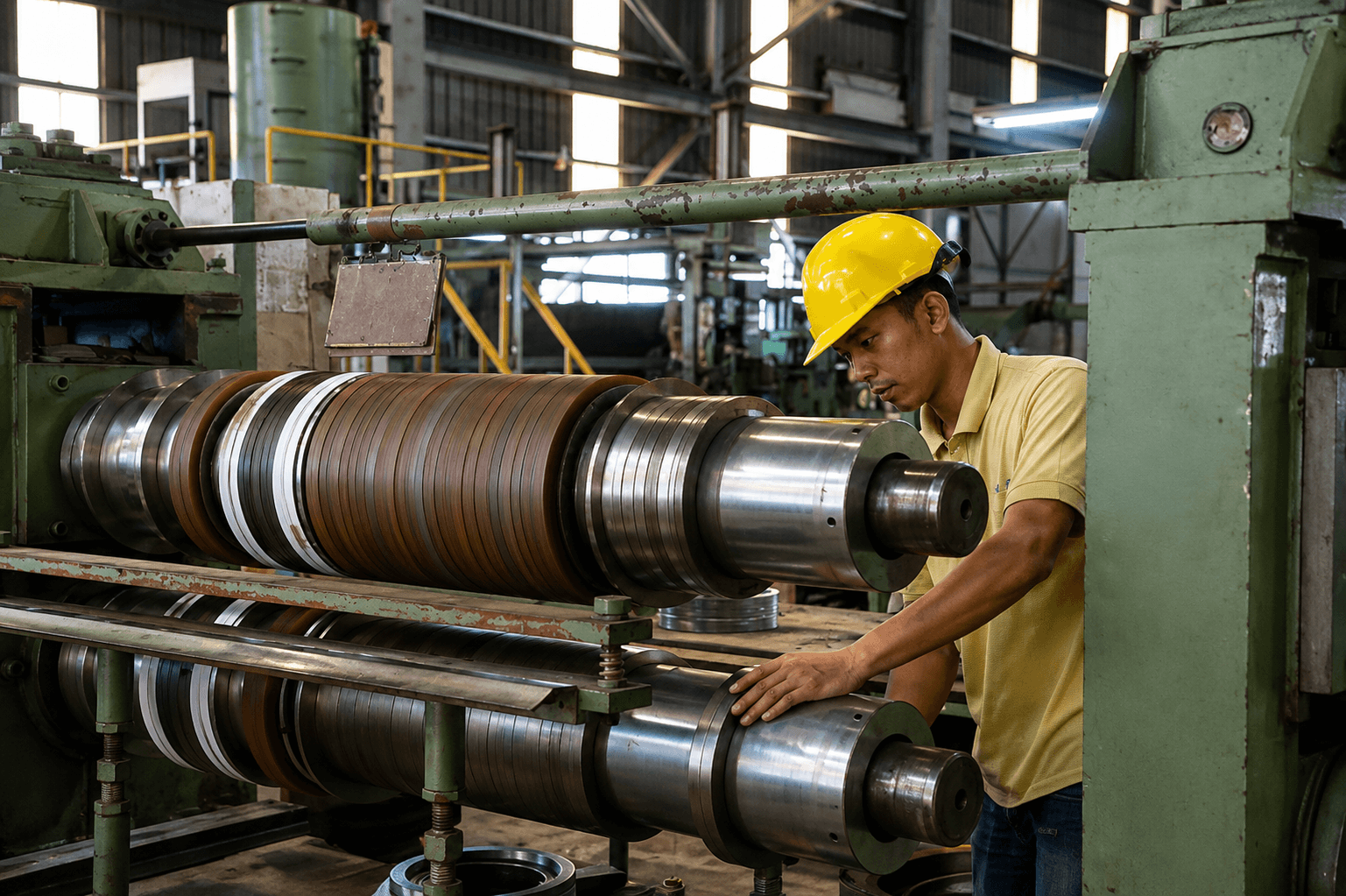

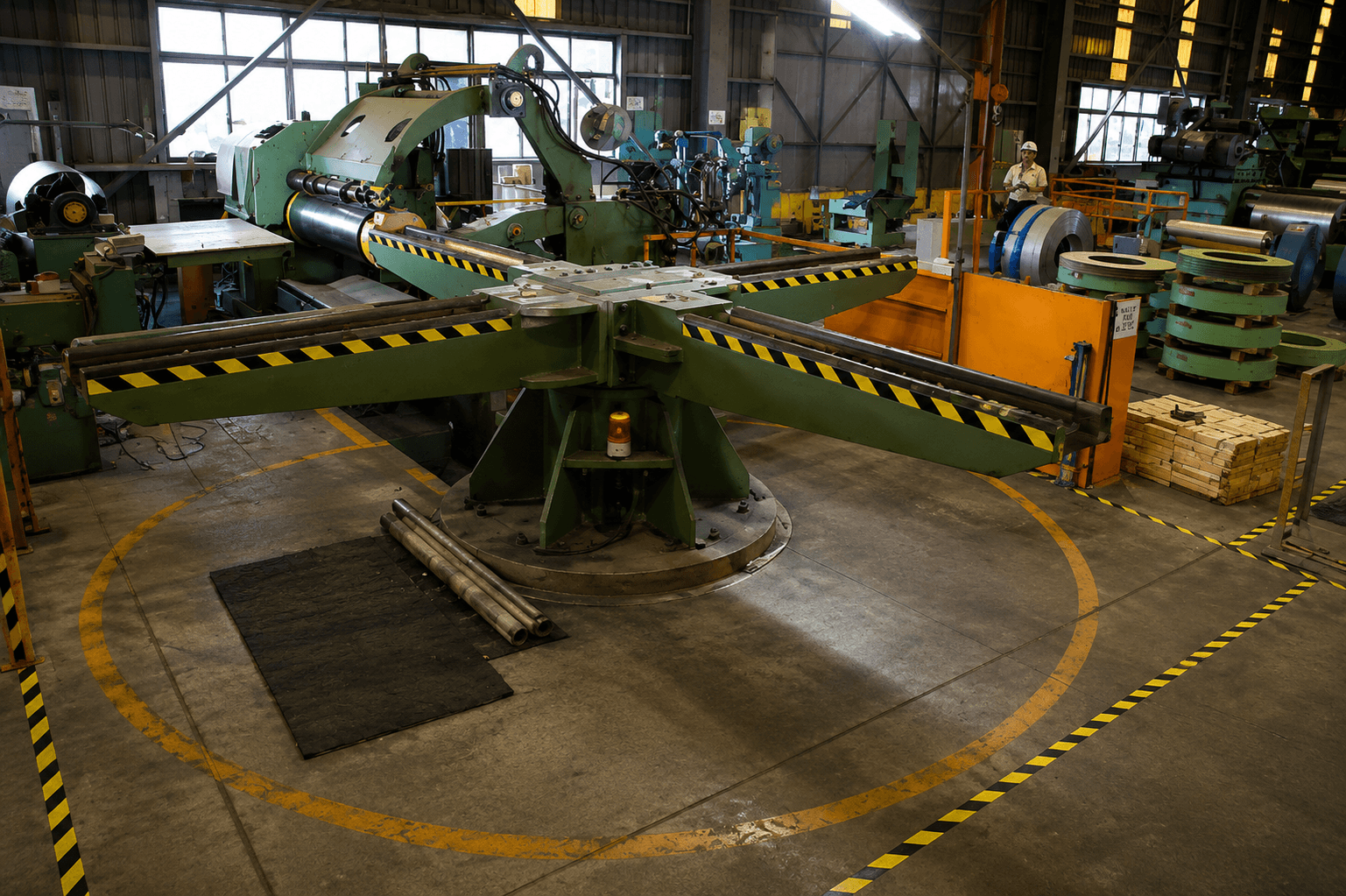

4 FEET 1250MM SLITTING MACHINE

  • Thickness Range: 0.20mm~3.00 mm, Width Range: 20mm~1300mm
  • Automatic coil feeding and center of position system
  • Coil Carrier Weight: 20MT
  • Slitting Speed:200M/min
  • Downstream slitter is servo motor drive; it’s improving width accuracy precision.
  • Belt tension machine can achieve re-coil flatness and reduce the surface scratches
  • Double Slitter Head can improve high precision/high performance/high production
  • Can process with both side with PVC/PE Film or Paper Interleaved
  • Coil ID: 508mm / 610mm, OD: 1800mm
  • Cross coil carrier machine can improve the coil discharge speed times.
Previous
Next

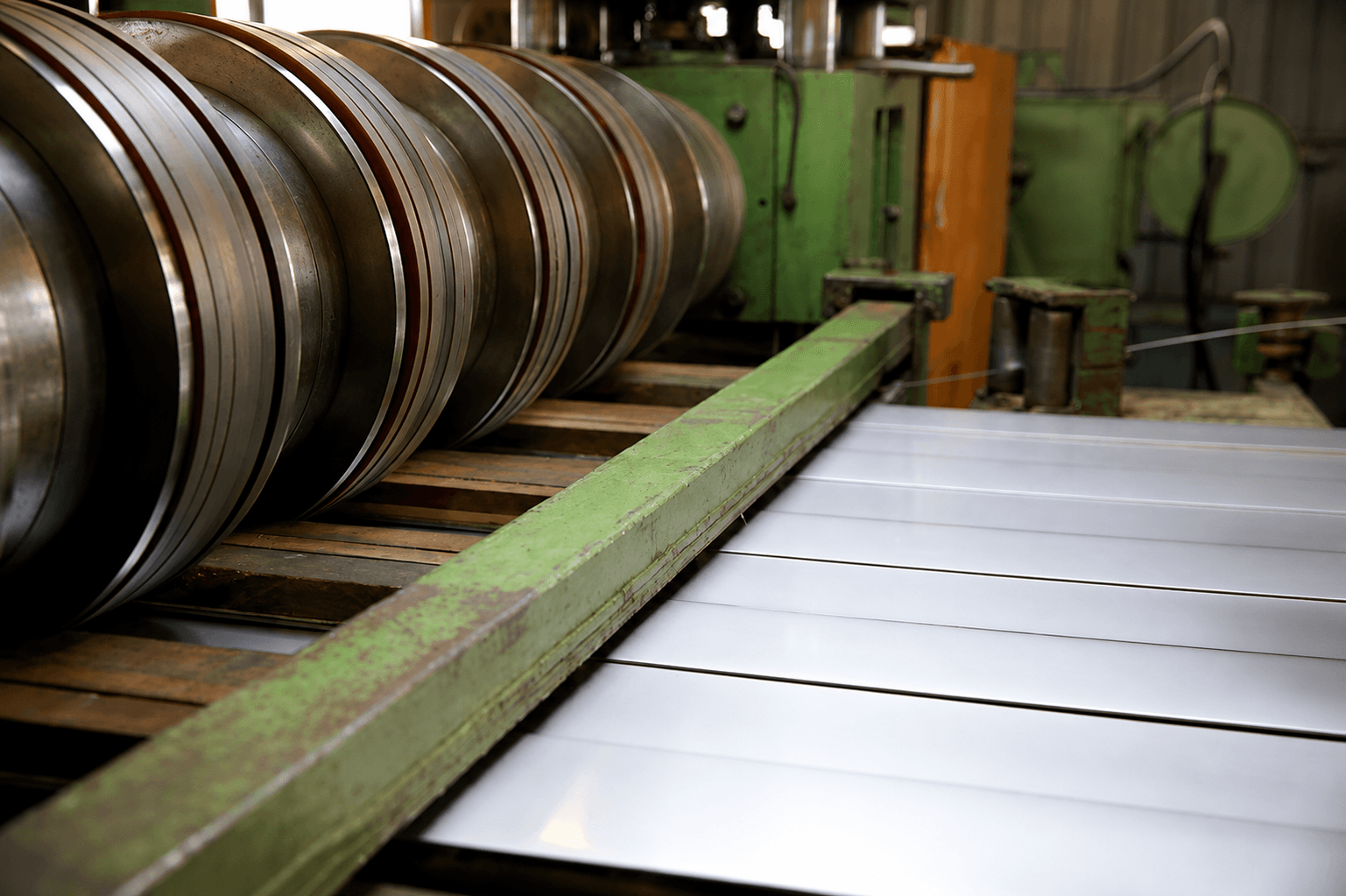

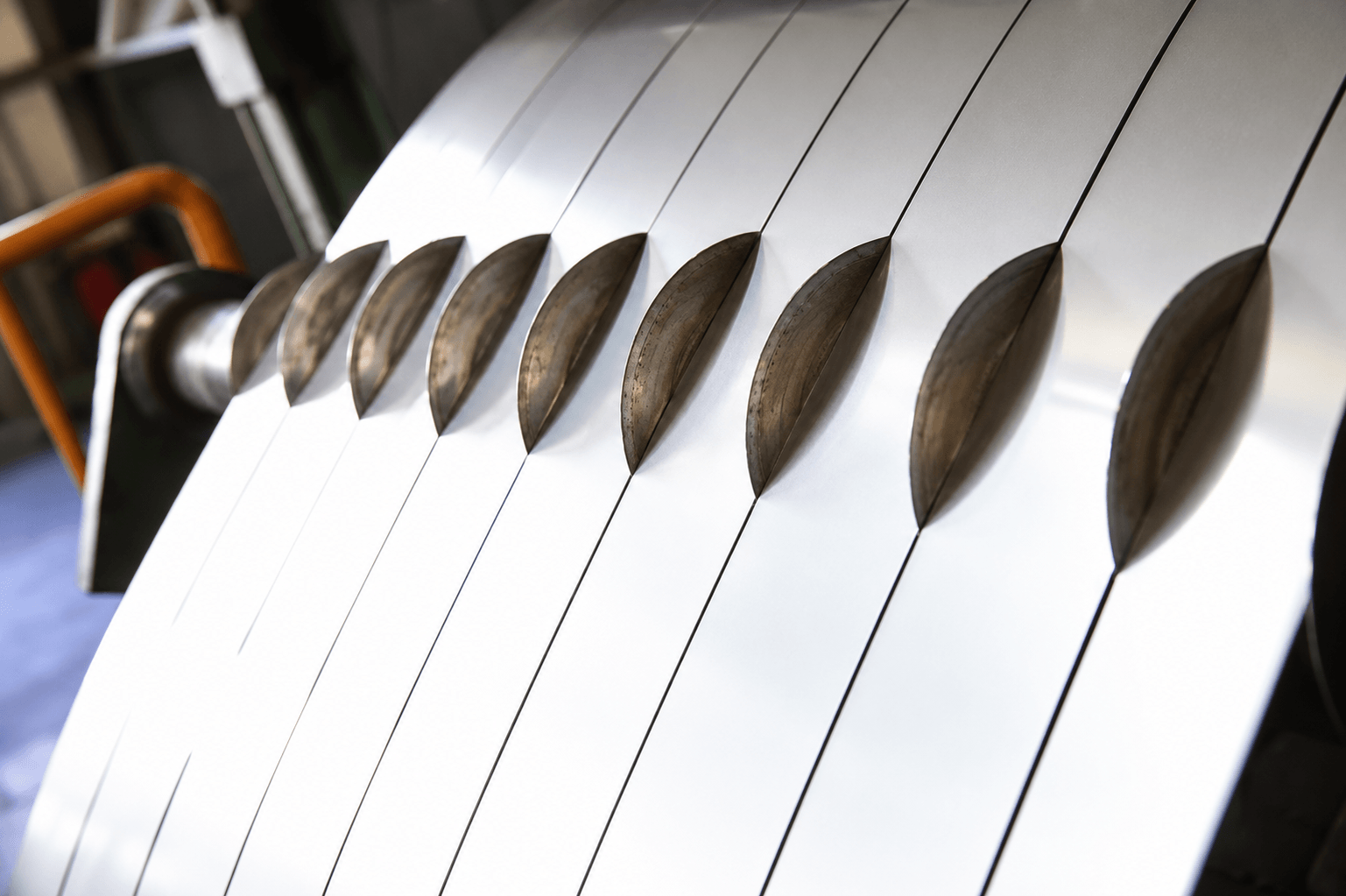

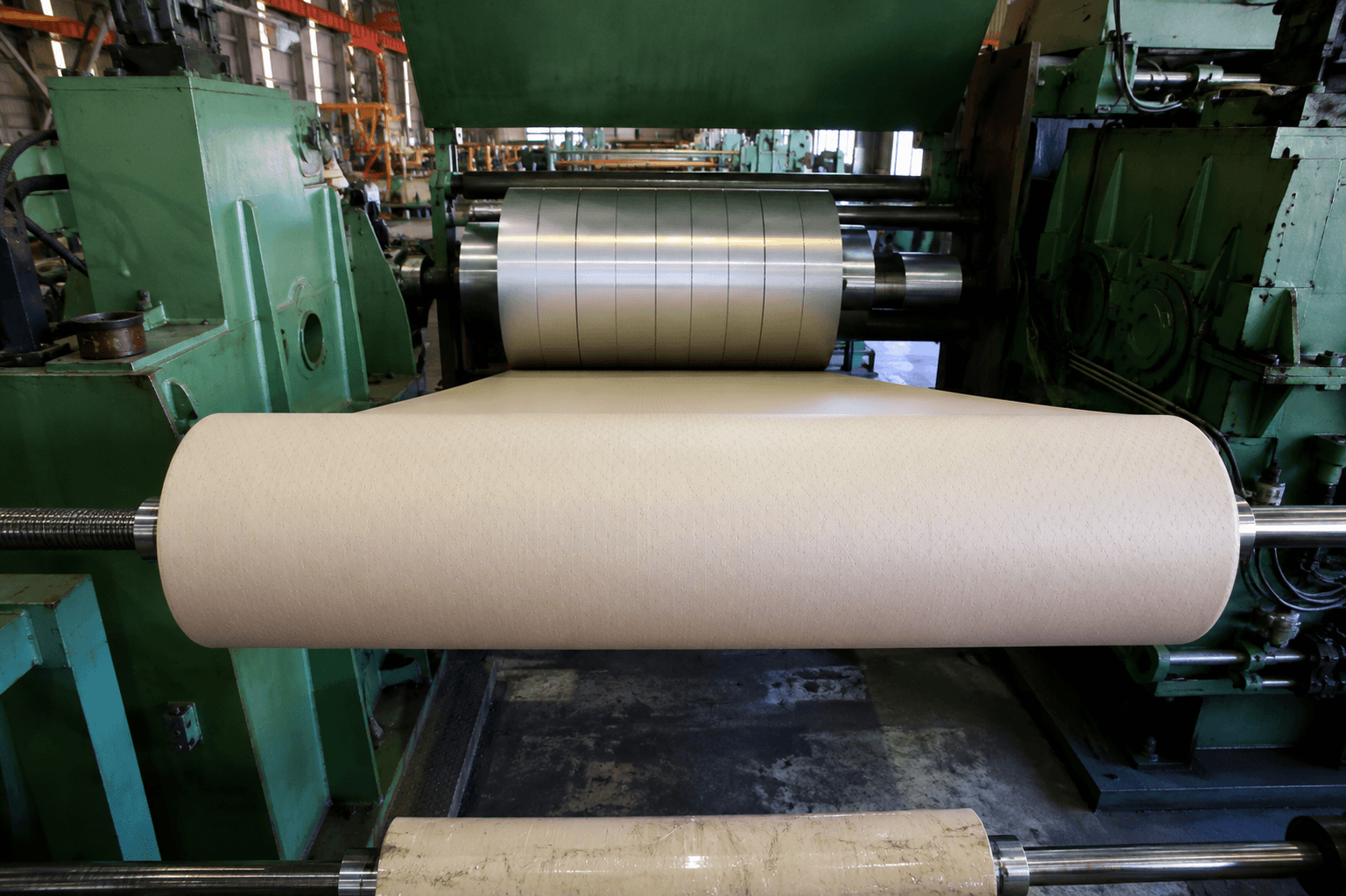

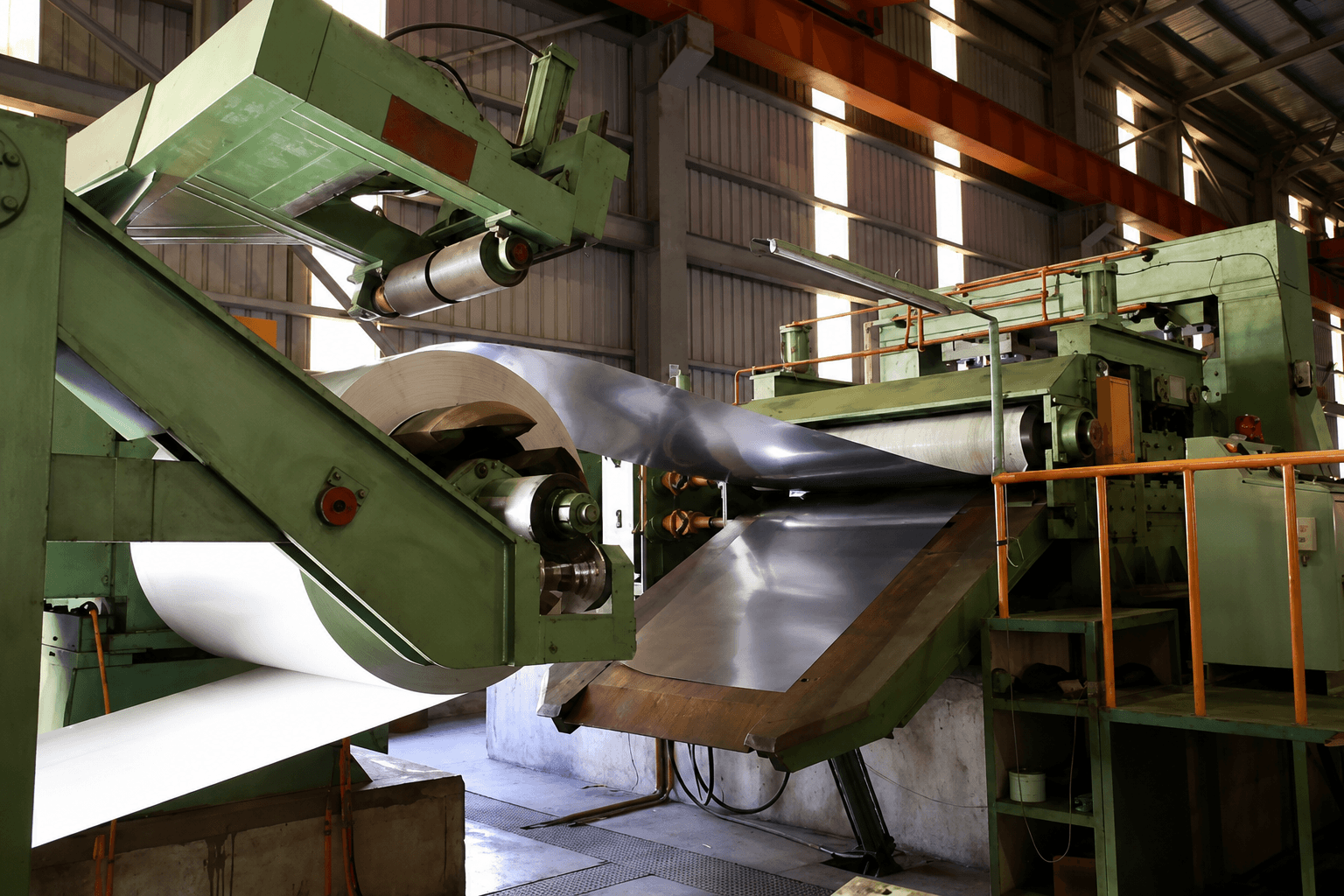

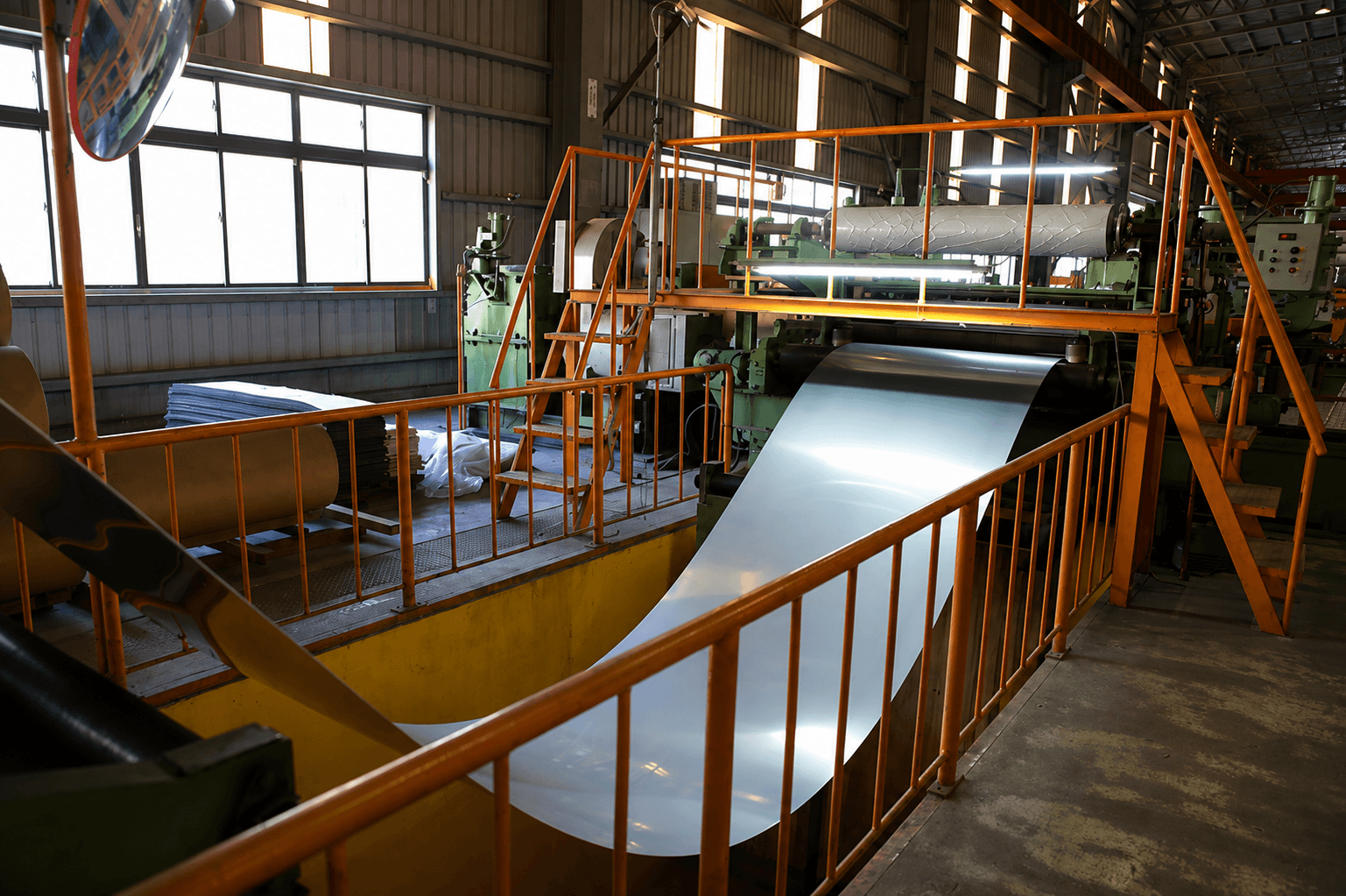

5 FEET STAINLESS STEEL COIL SLITTING MACHINE

  • Thickness Range : 0.50mm~8.00 mm,Width Range: 30mm~1650mm
  • Coil Carrier Weight: 20MT
  • Can process with both side with PVC/PE Film or Paper Interleaved
  • Coil ID: 508mm / 610mm, OD: 1800mm
Previous
Next

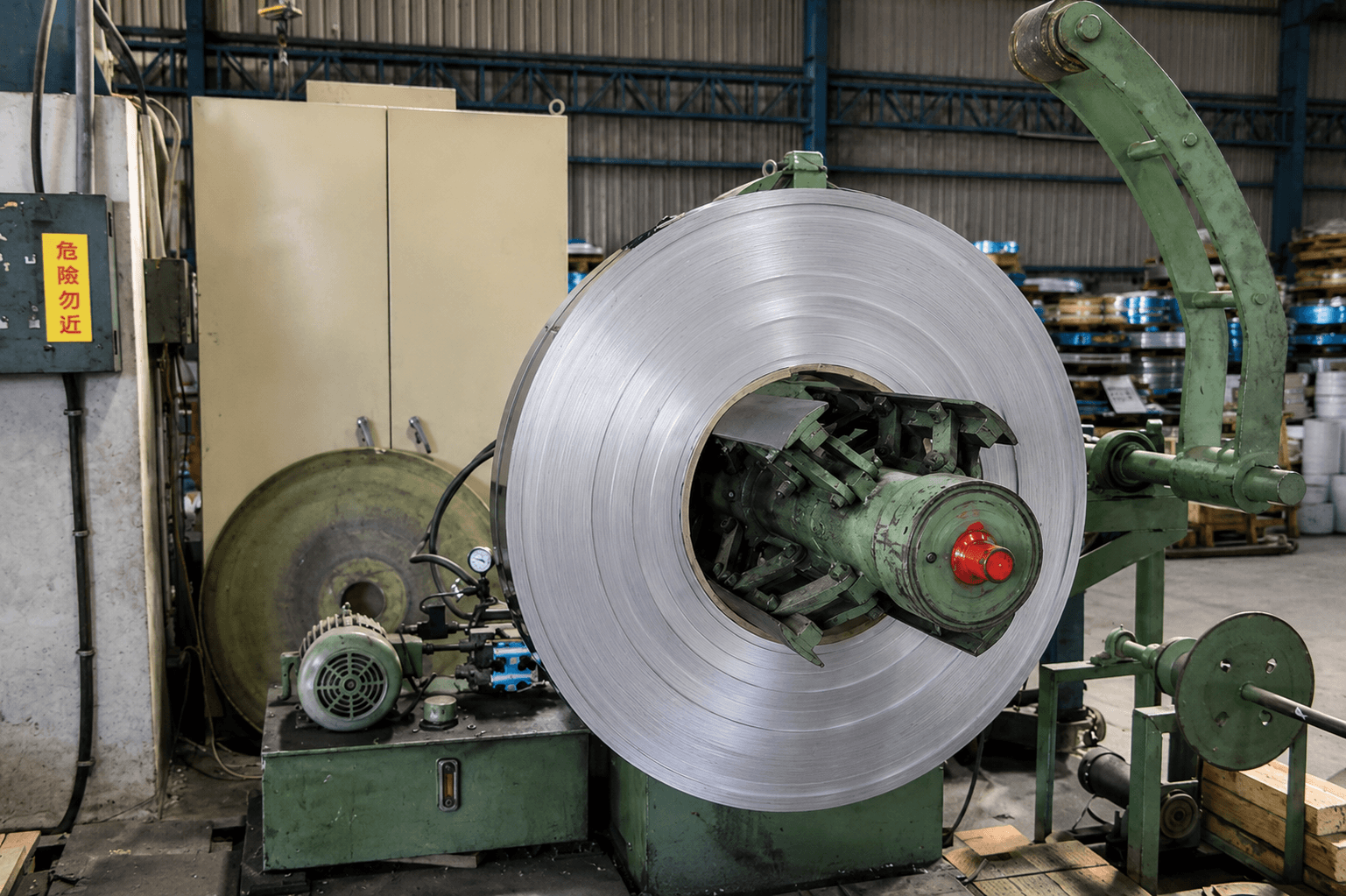

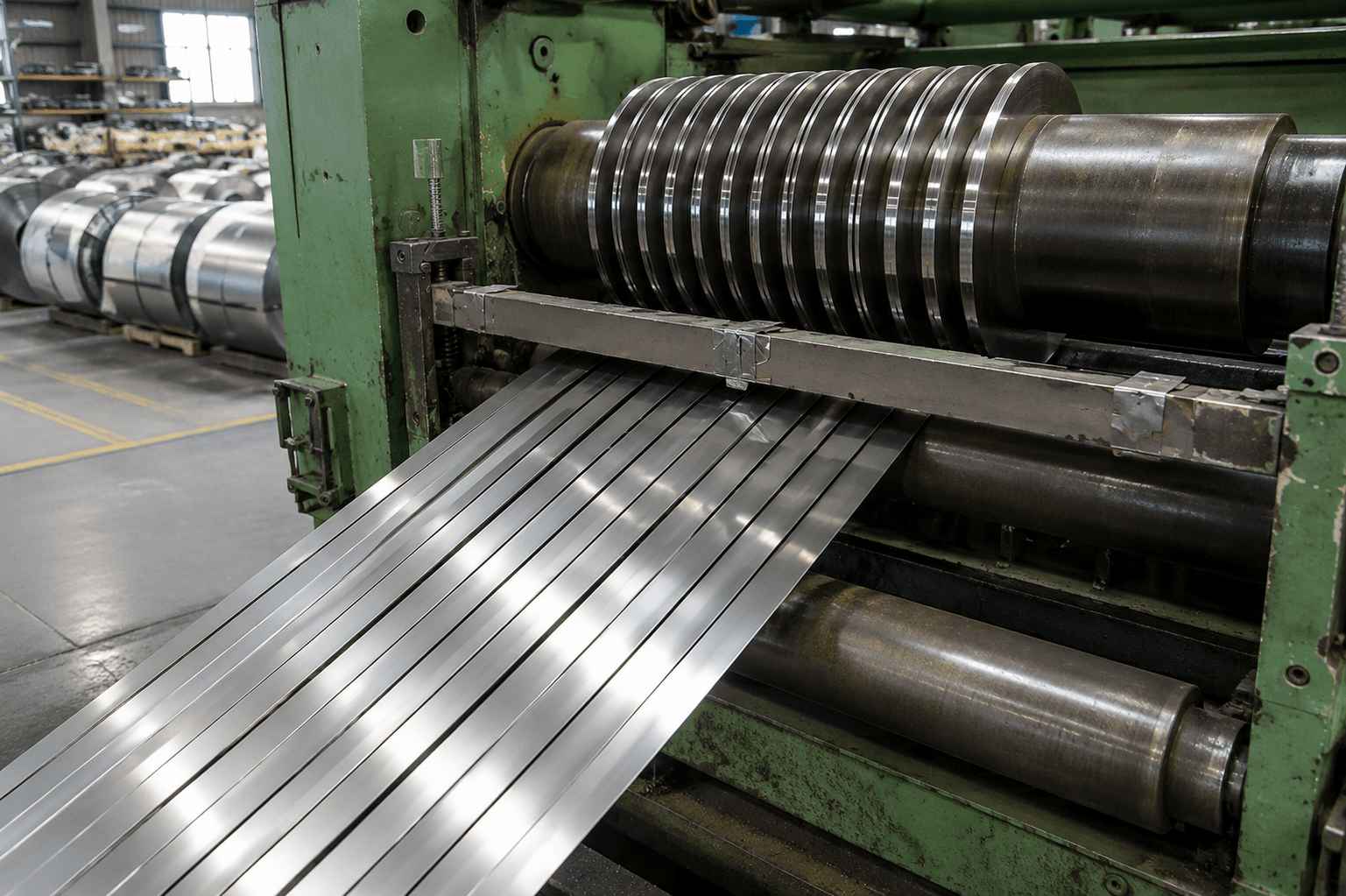

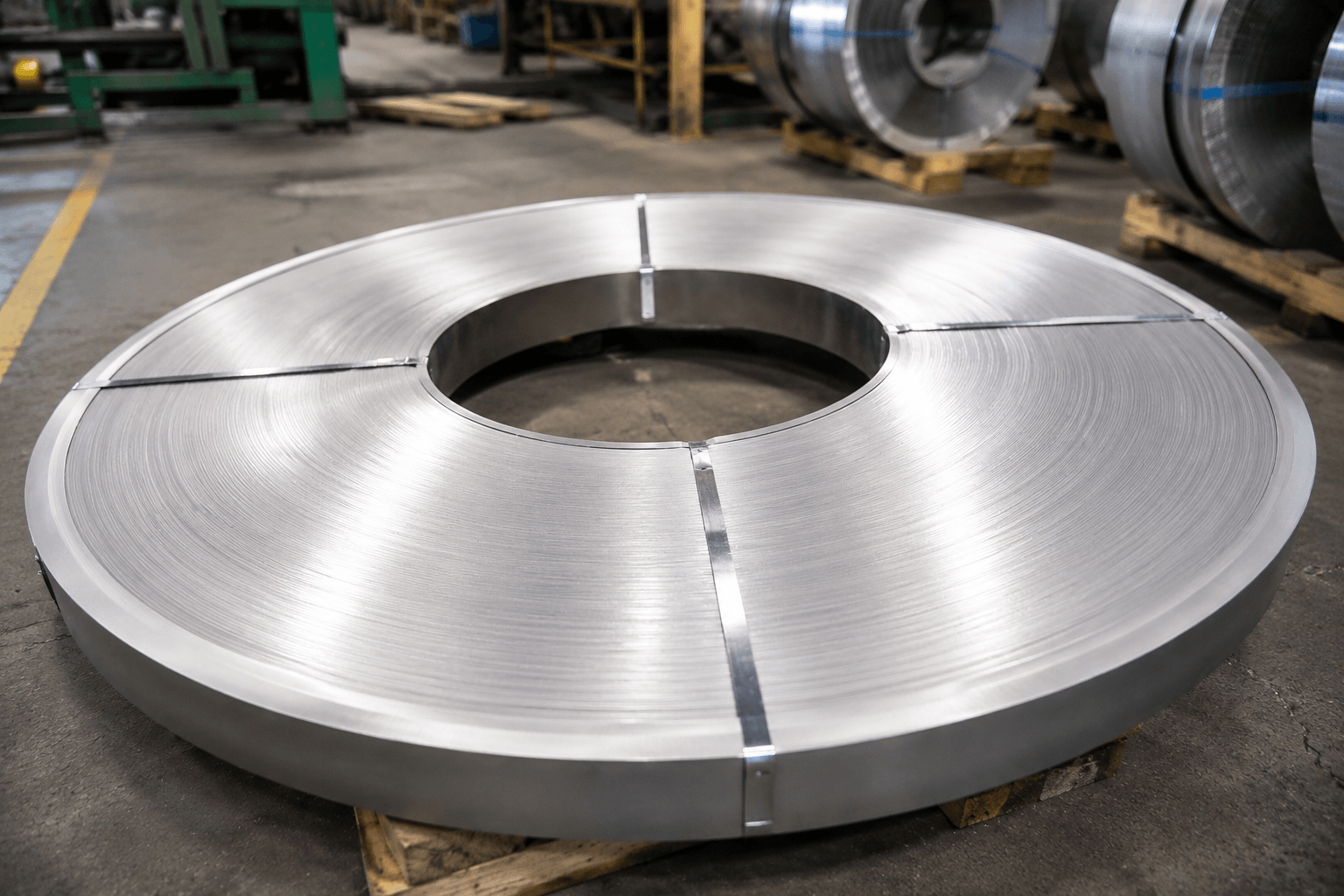

650MM SLITTING MACHINE

  • Thickness Range: 0.20mm~2.00mm,
  • Width Range: 20mm~650mm
  • Can process with both side with PVC/PE Film or Paper Interleaved
  • Coil ID: 300mm / 400mm / 500mm
Previous
Next

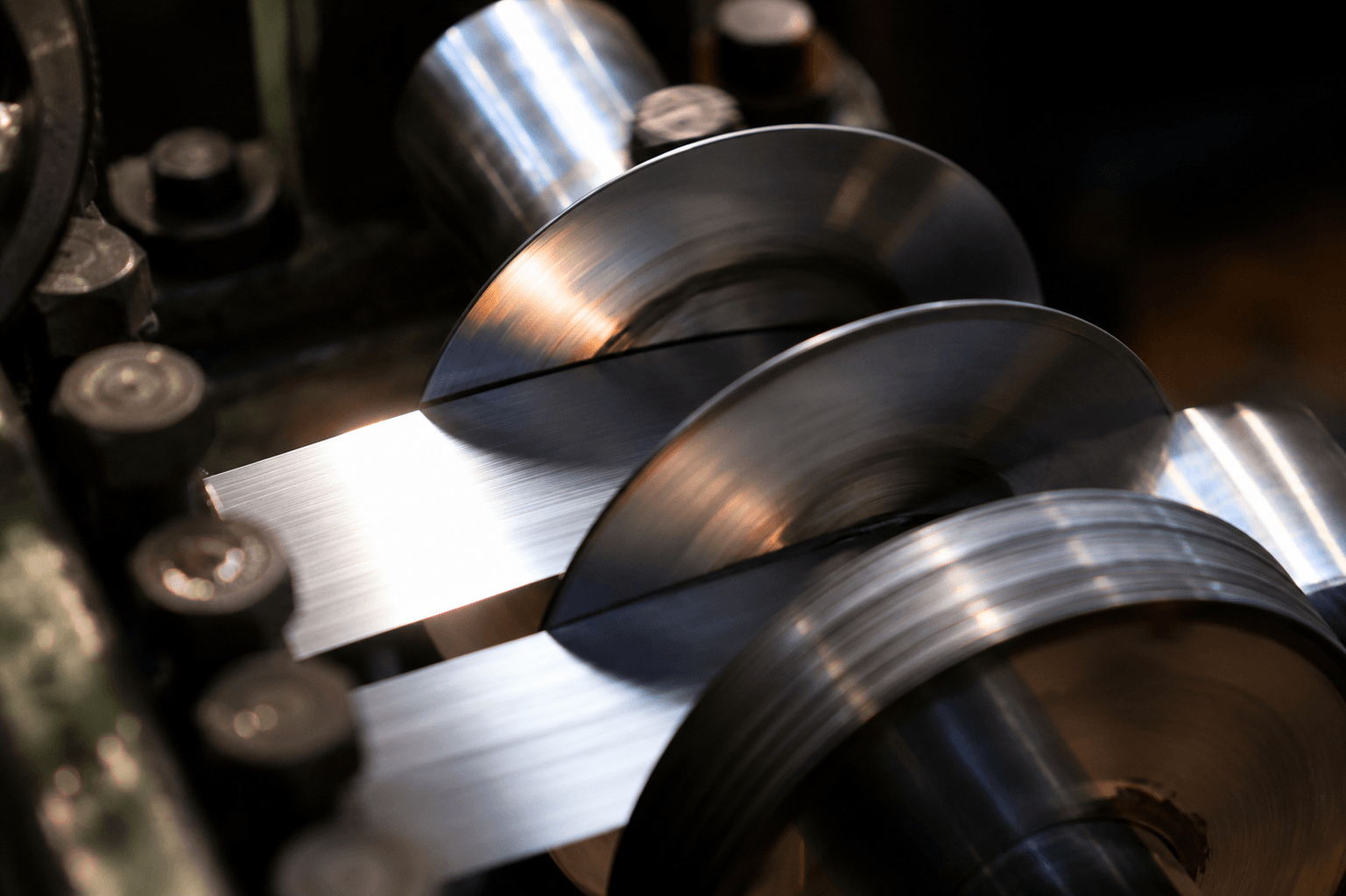

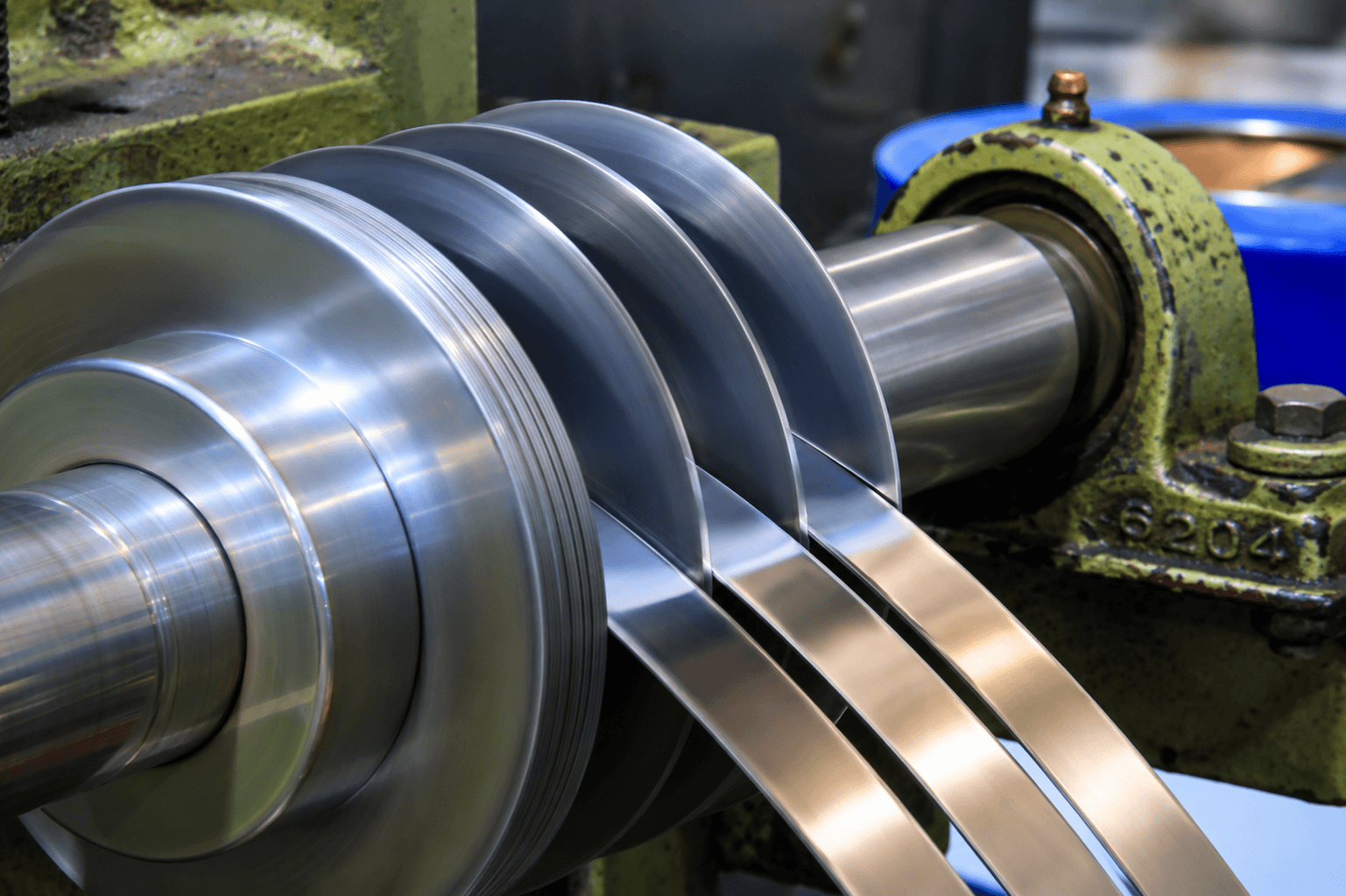

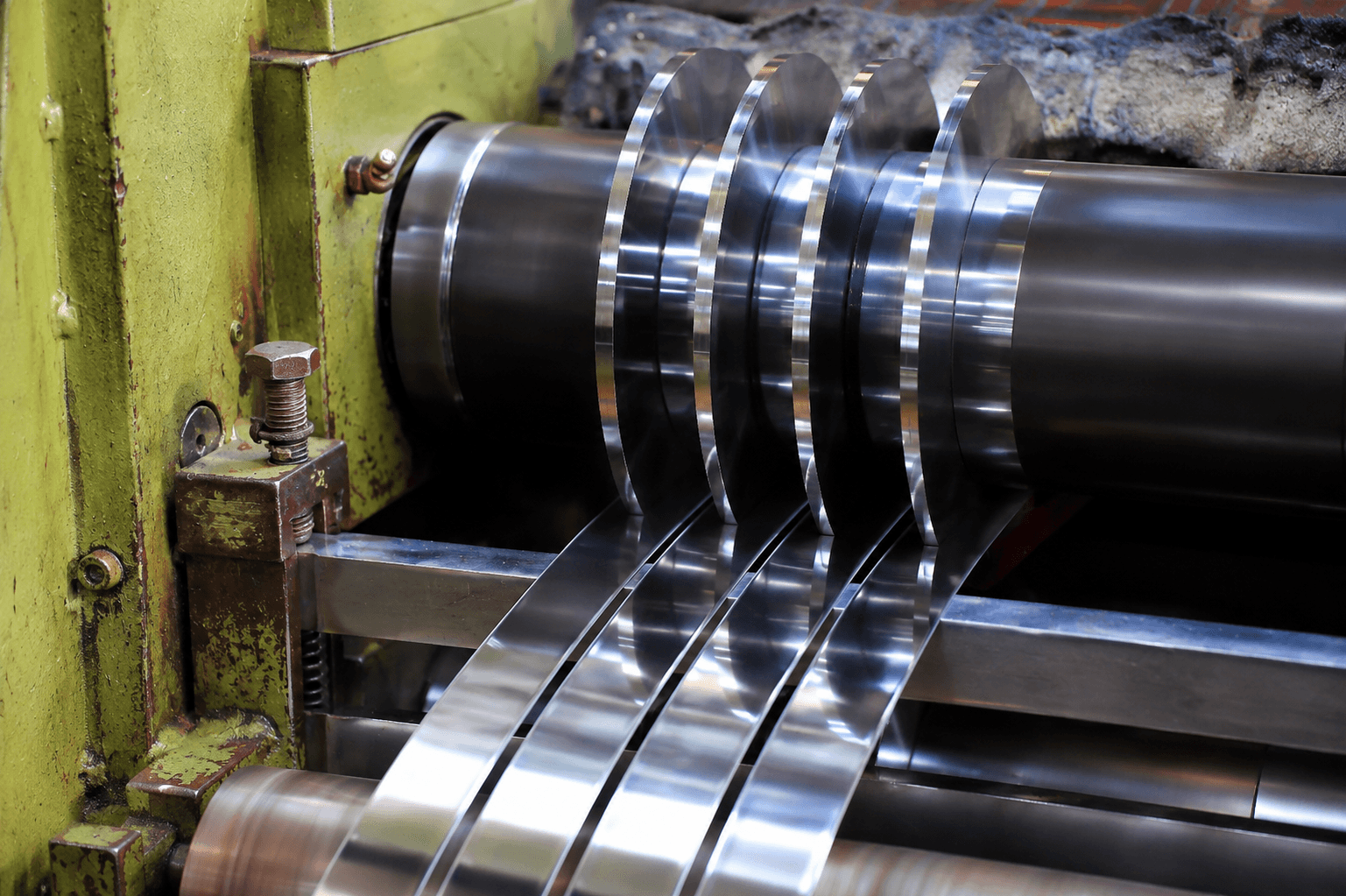

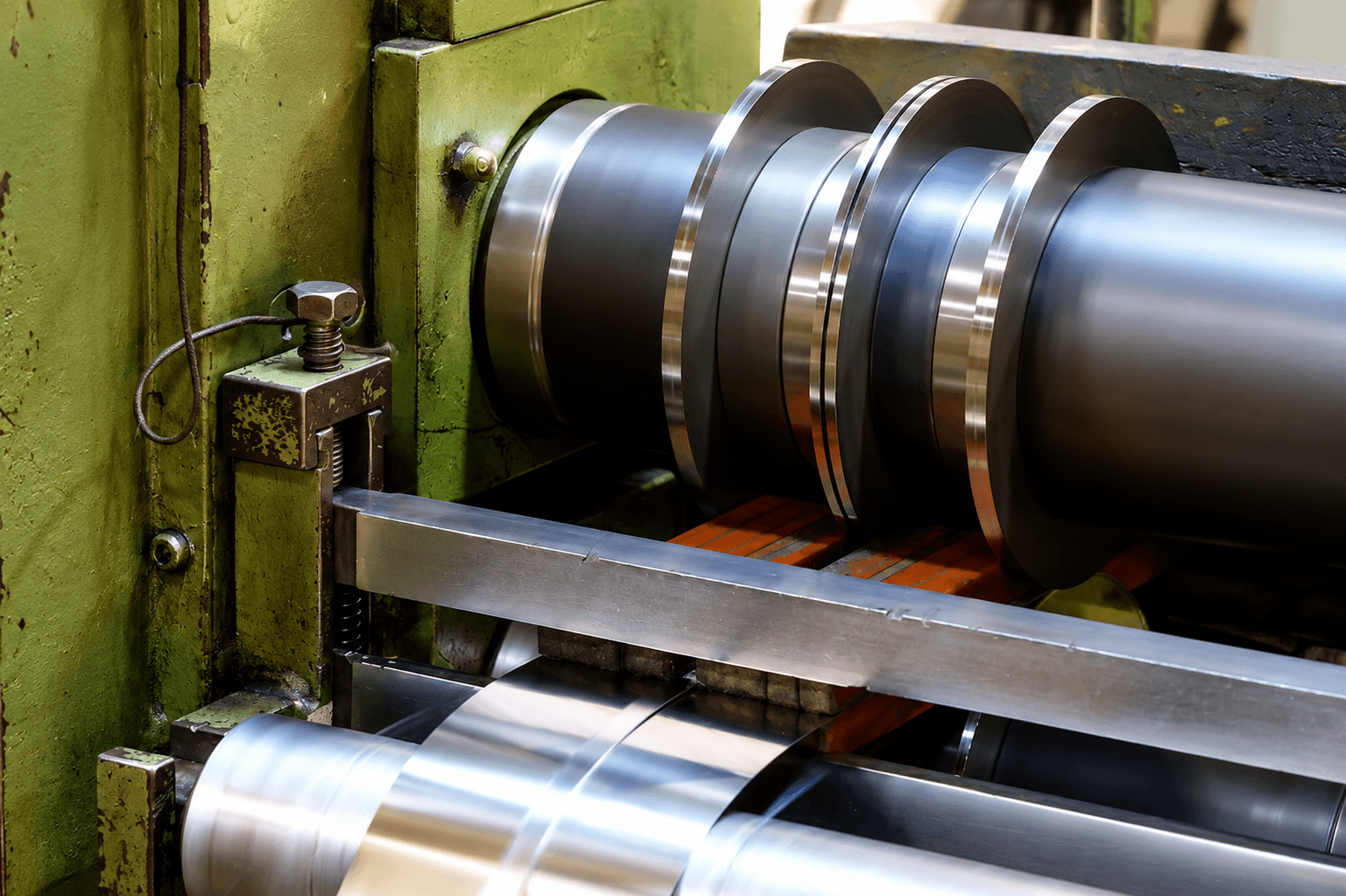

400MM SLITTING MACHINE

  • Thickness Range: 0.1mm~1.50mm,
  • Width Range: 4mm~400mm
  • Can process with both side with PVC/PE Film or Paper Interleaved
  • Coil ID: 300mm / 400mm / 500mm

STAINLESS STEEL SHEET CUTTING

Previous
Next

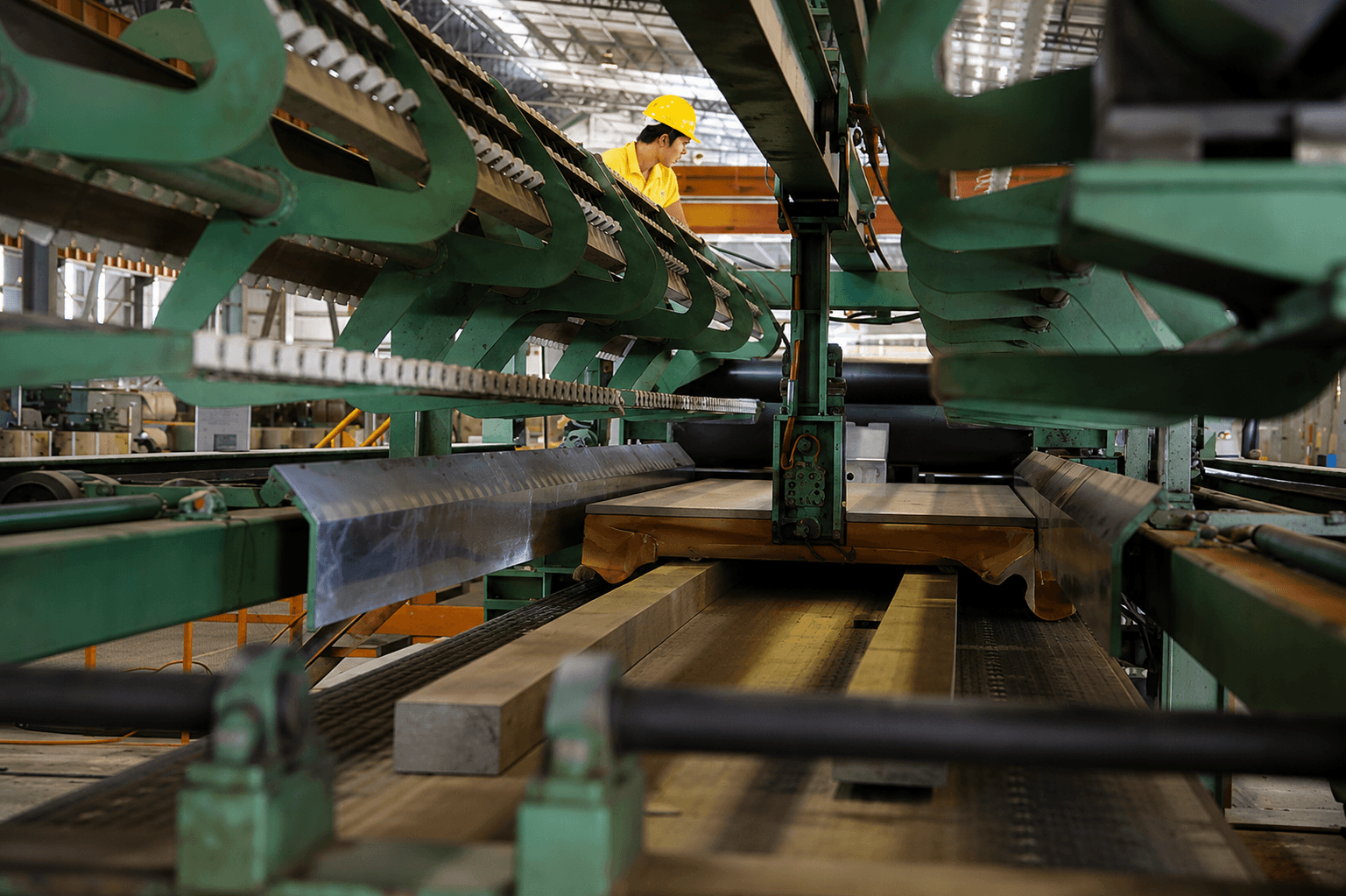

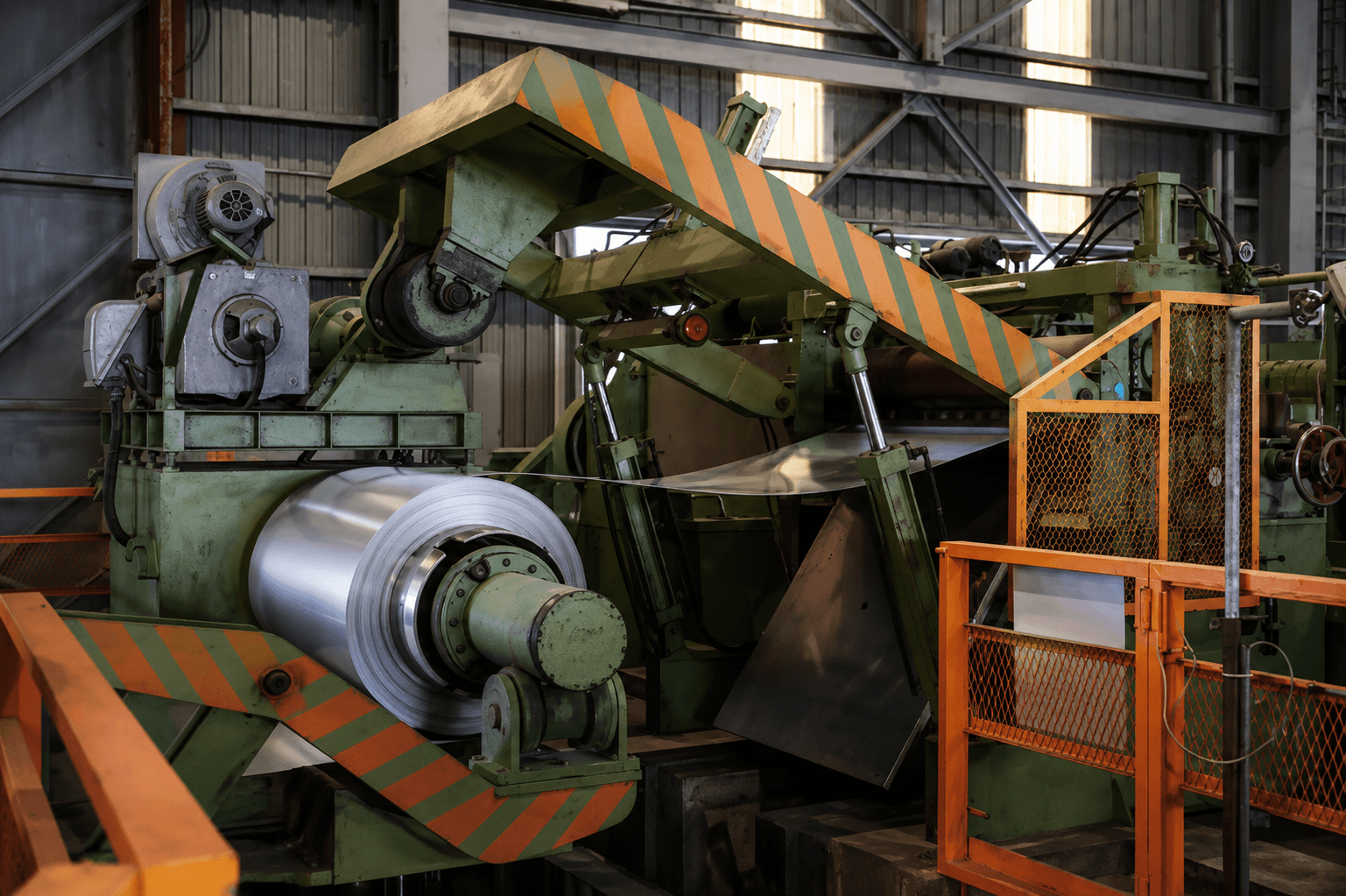

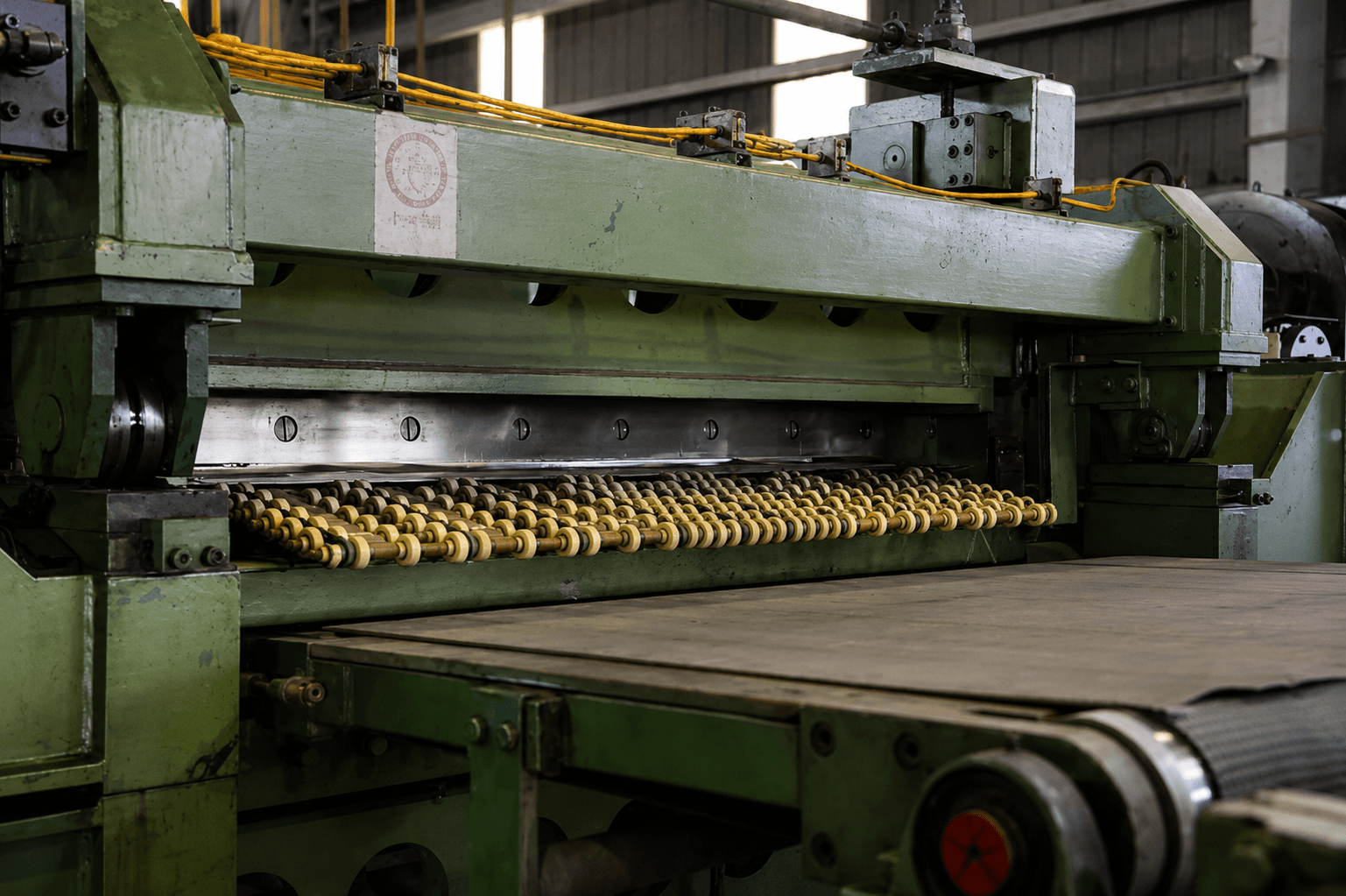

4FT 1250MM HIGH SPEED CUTTING

  • Thickness Range: 0.30mm~2.00 mm, Width Range: 420mm~1300mm
  • Produce length: 300mm~6000mm, length tolerance: +/-0.3mm
  • Full Set of machine made in Sweden
  • Six-level flat machine can eliminate the stress of the material, also cab adjust the wave and the edge of the sheet shape.
  • Adjustable blade position to achieve the best slit condition.
  • Slitter Head continues cutting without non-stopping.
  • Can be used both air/wheel receive sheets.
  • During processing can slitting edge then cutting sheet.
  • Can process with both side with PVC/PE Film or Paper Interleaved
Previous
Next

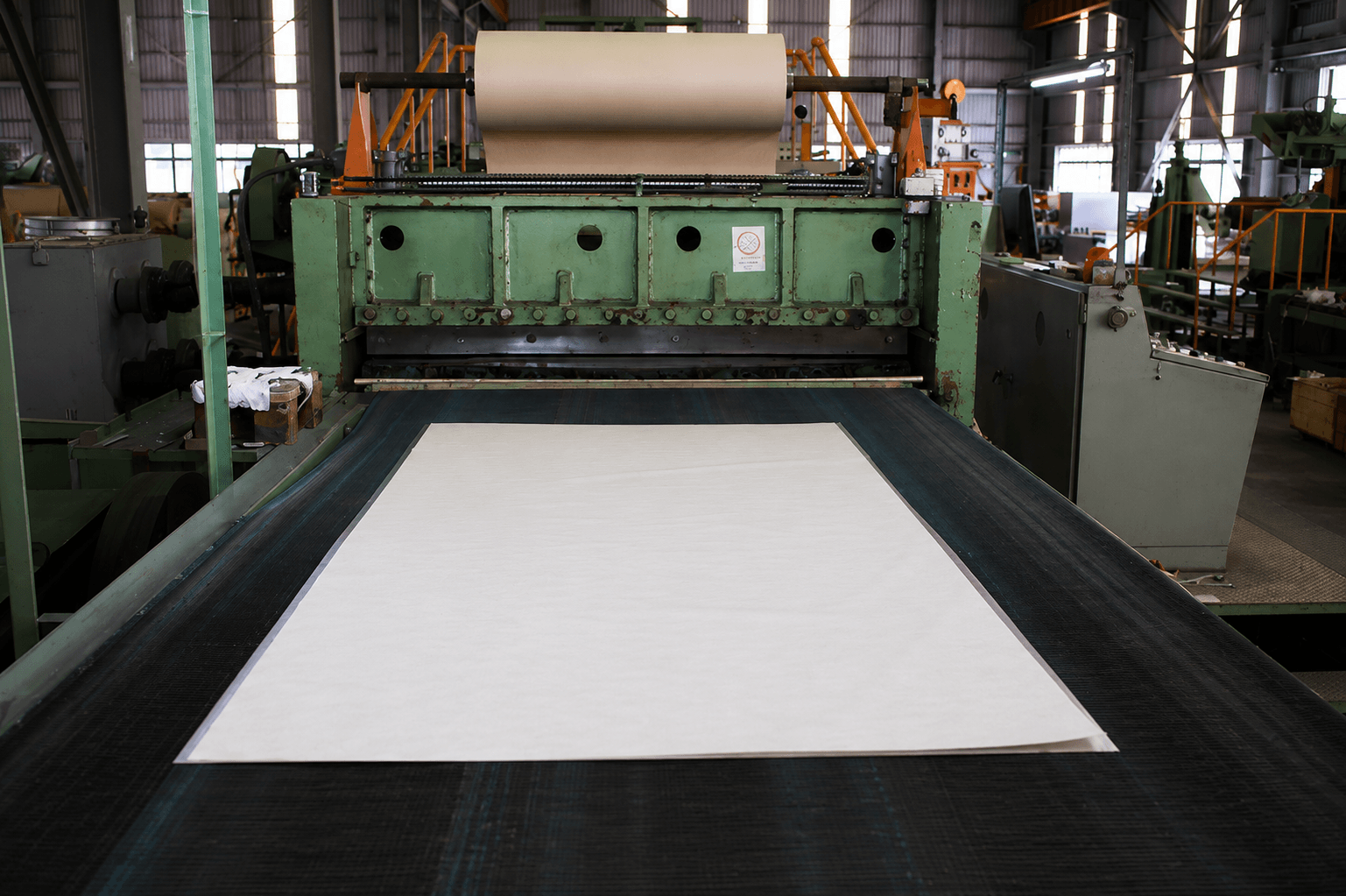

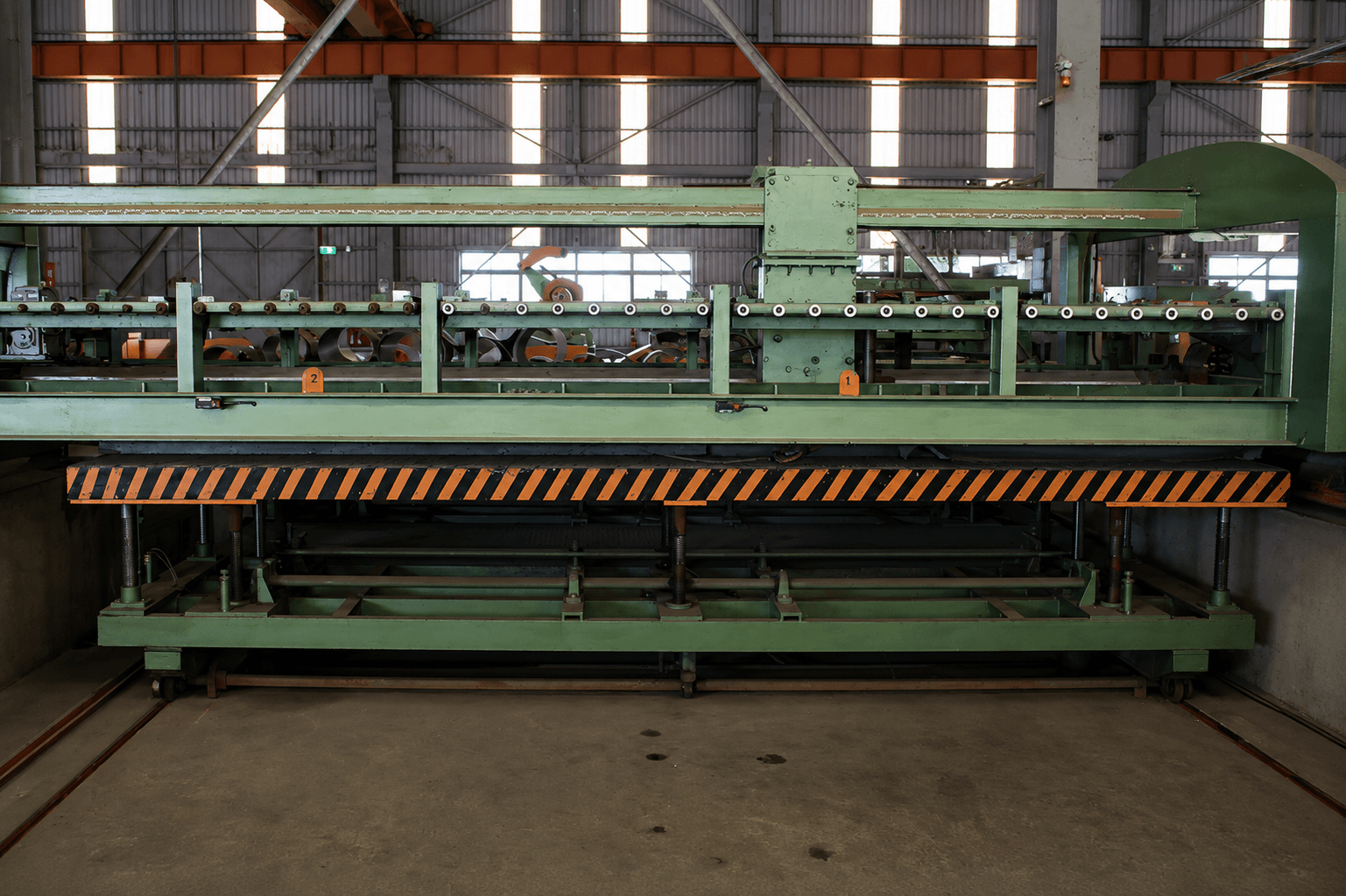

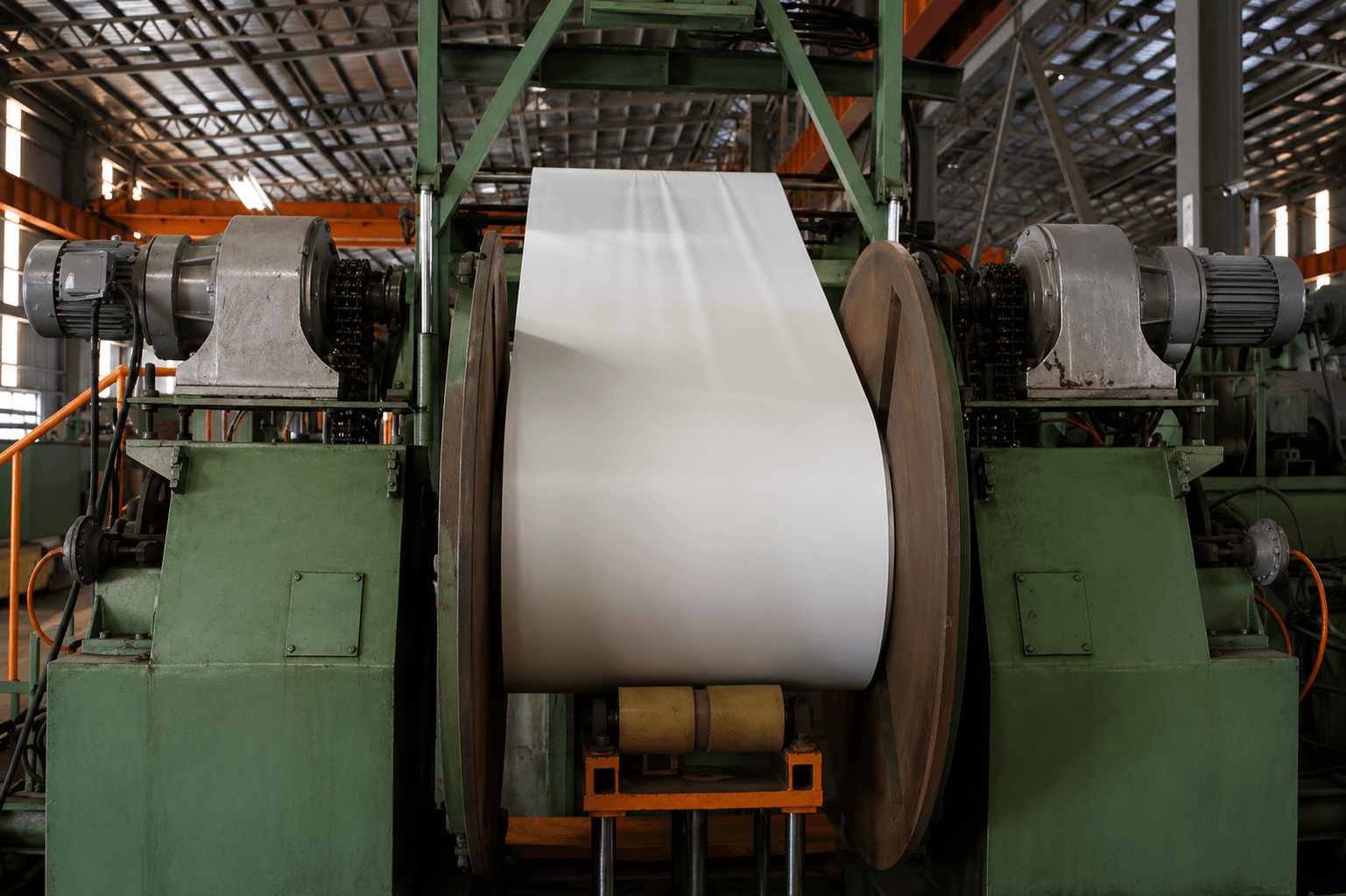

5FT 1550MM AUTO CUTTING MACHINE

  • Thickness Range: 0.40mm~8.00 mm, Width Range:600mm~1550mm
  • Produce length: 500mm~6000mm, length tolerance: +/-0.3mm
  • 3 set of tension level machine and reduce the wave and auto flatness.
  • Can be used both air/wheel receive sheets.
  • Can process with both side with PVC/PE Film or Paper Interleaved
Previous
Next

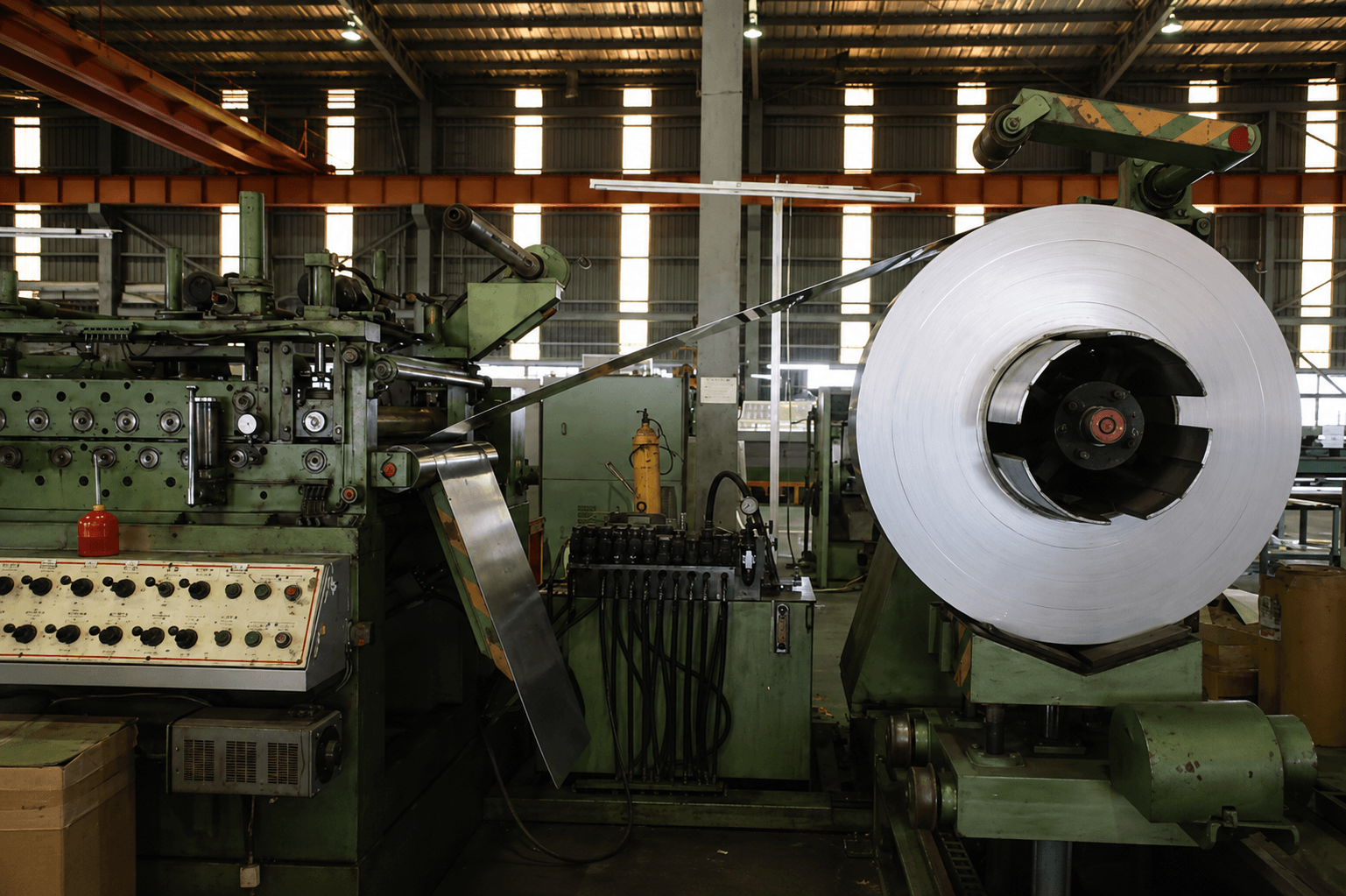

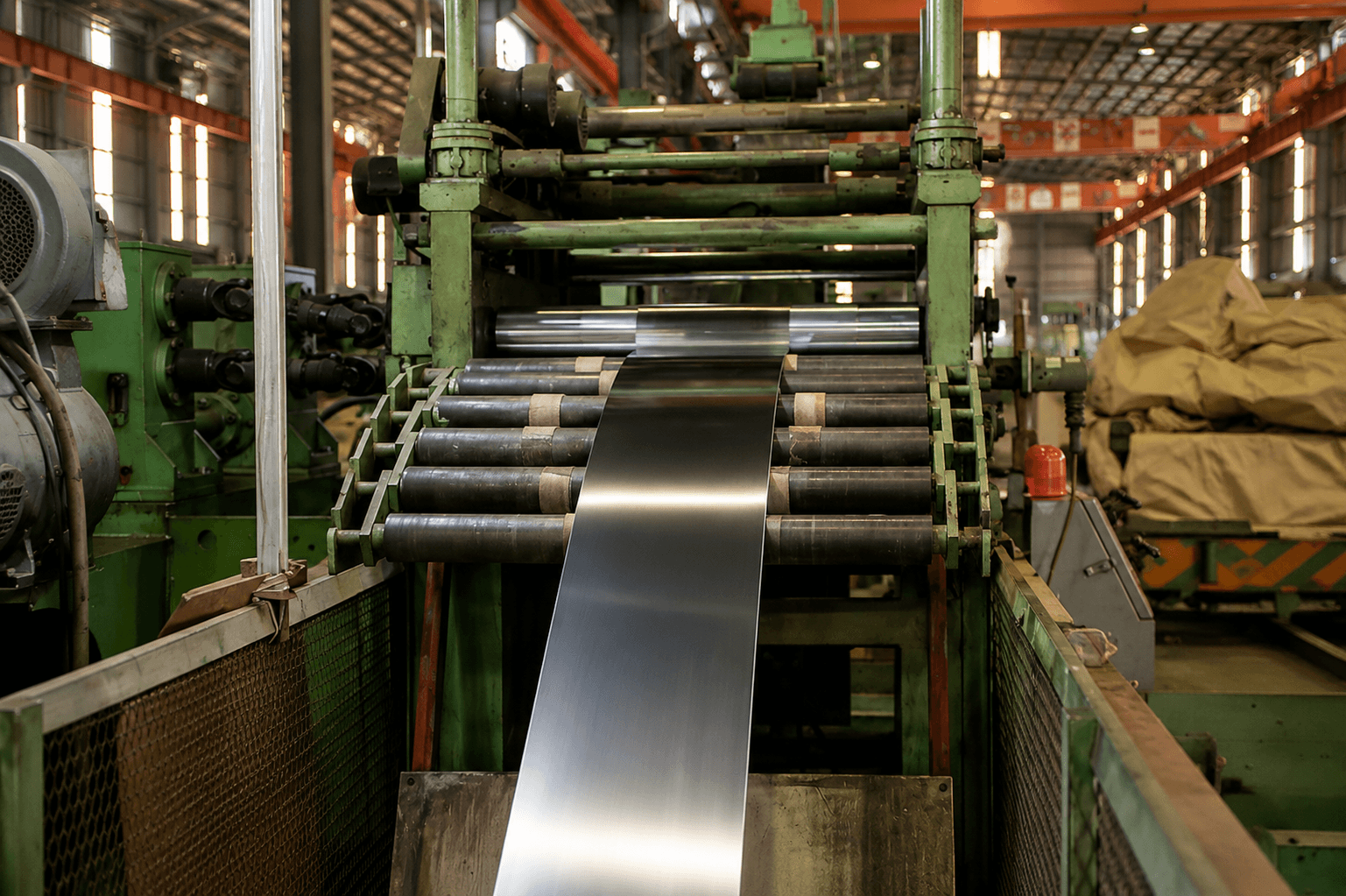

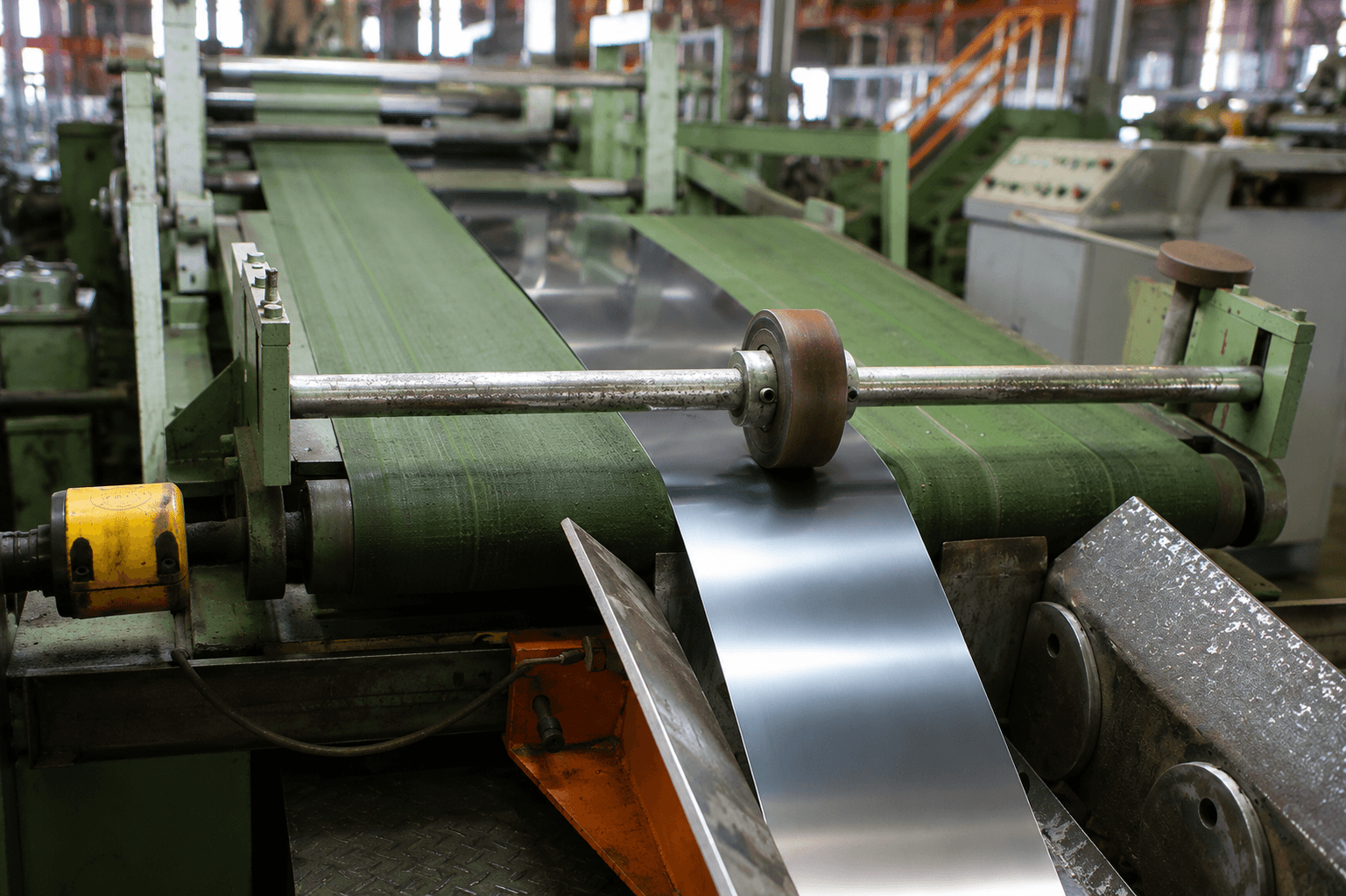

800MM AUTO CUTTING MACHINE

  • Thickness Range: 0.20mm~2.00 mm, Width Range: 20mm~800mm
  • Produce length: 2000mm max, length tolerance: +/-0.2mm
  • Computer NC control can accurately calculate the length
  • Double remove material trolleys can save time
  • Can process with both side with PVC/PE Film or Paper Interleaved

STAINLESS STEEL COIL/SHEET IMEAS POLISHING

Previous
Next

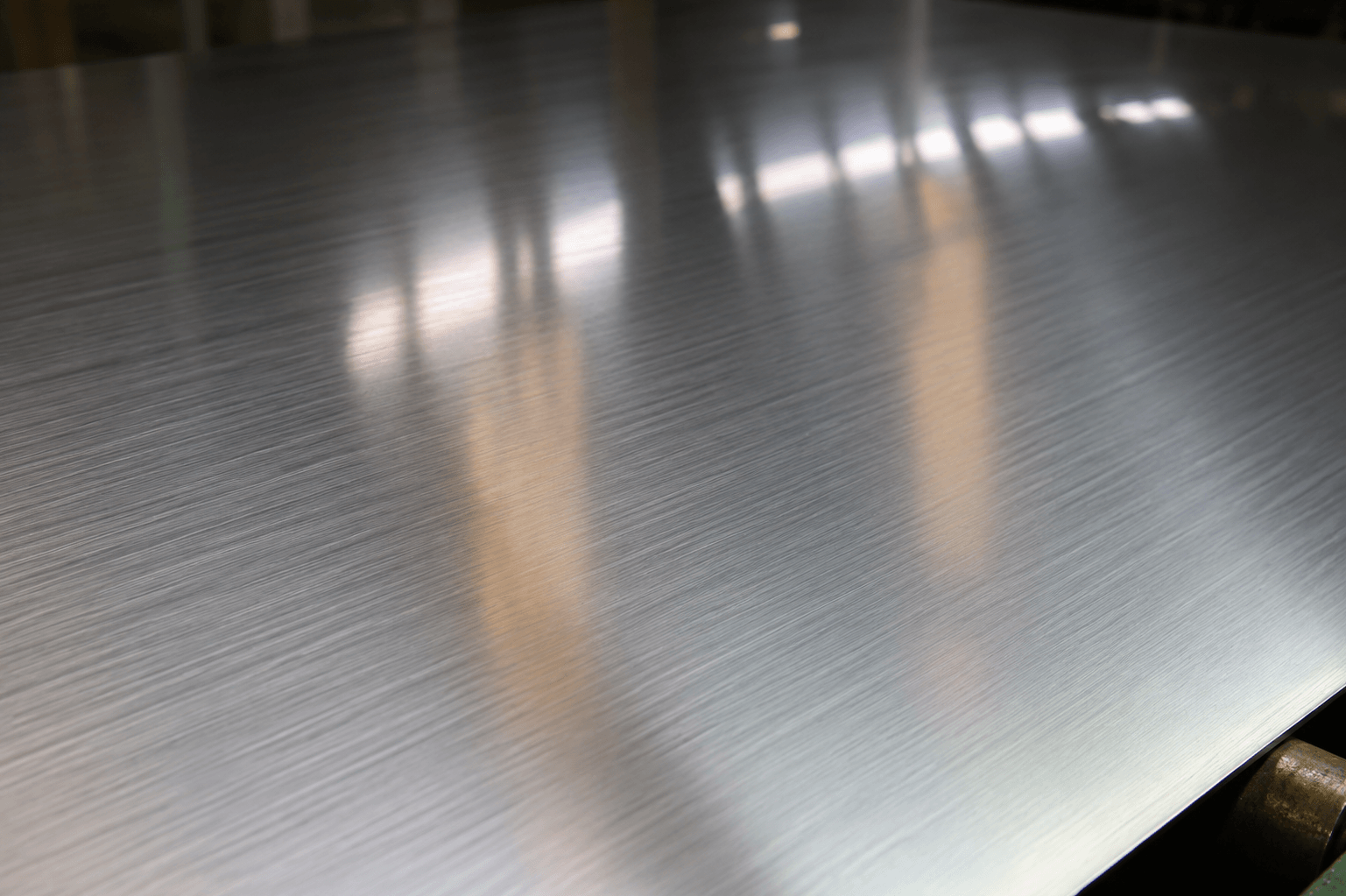

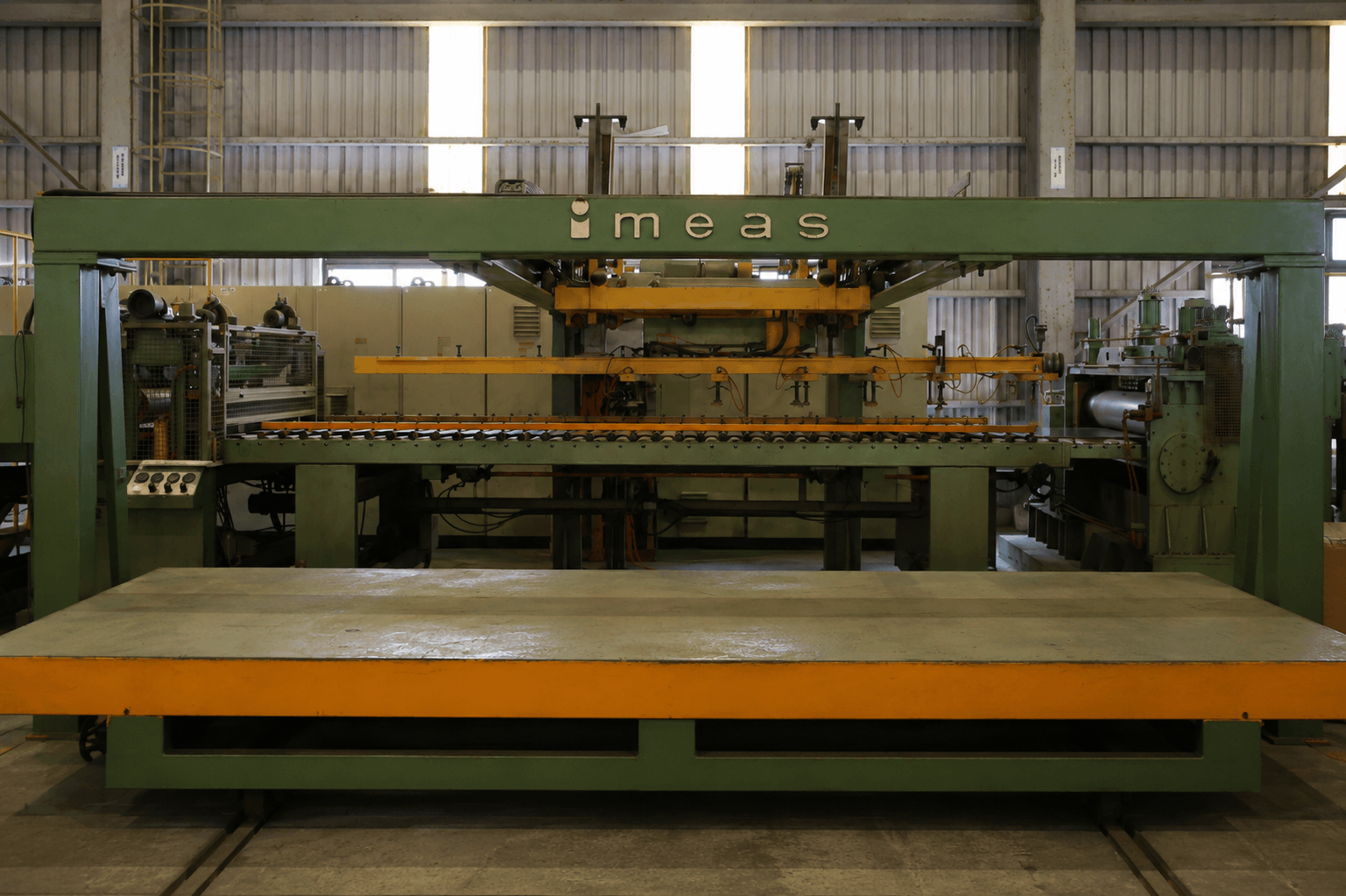

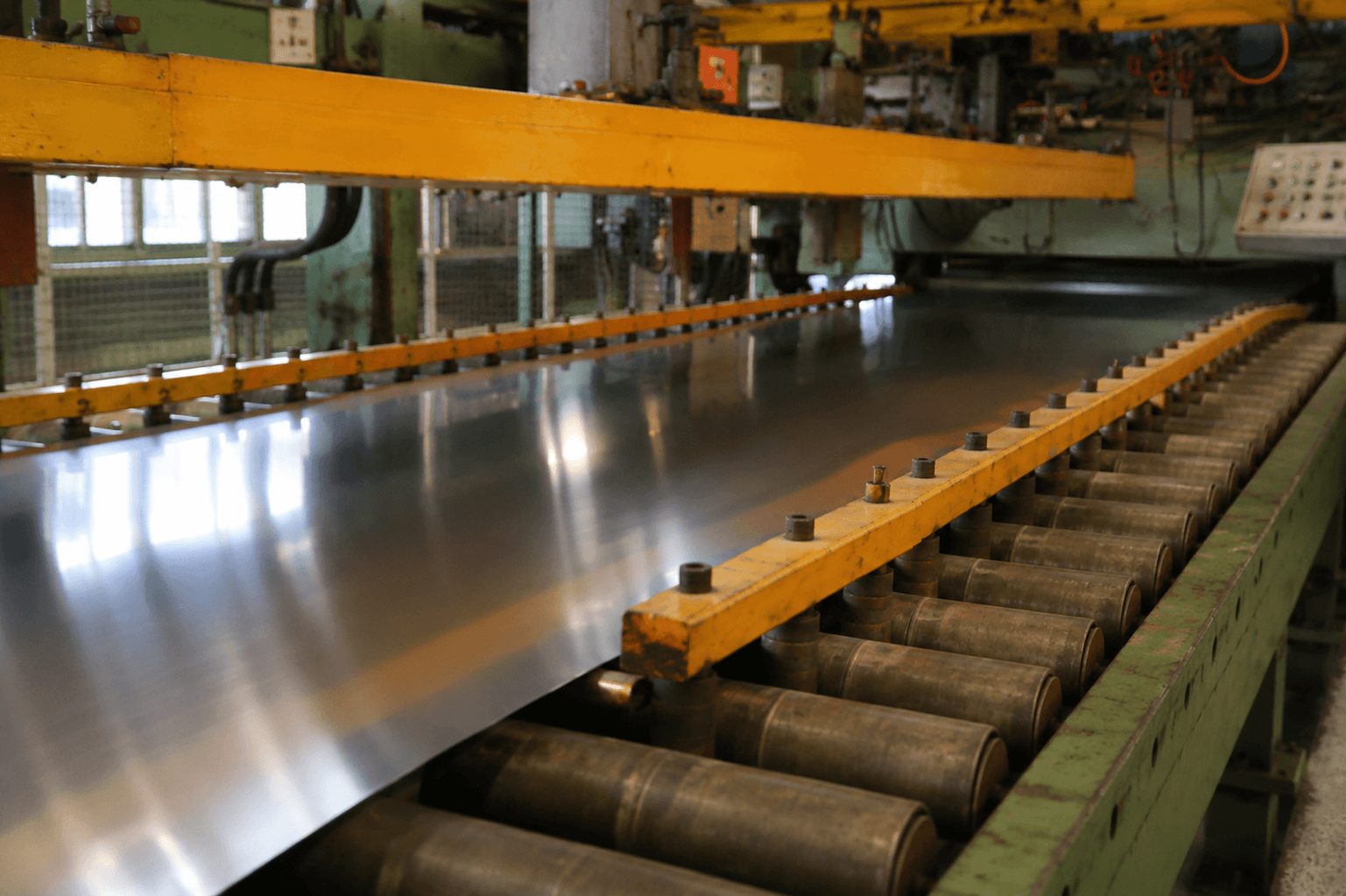

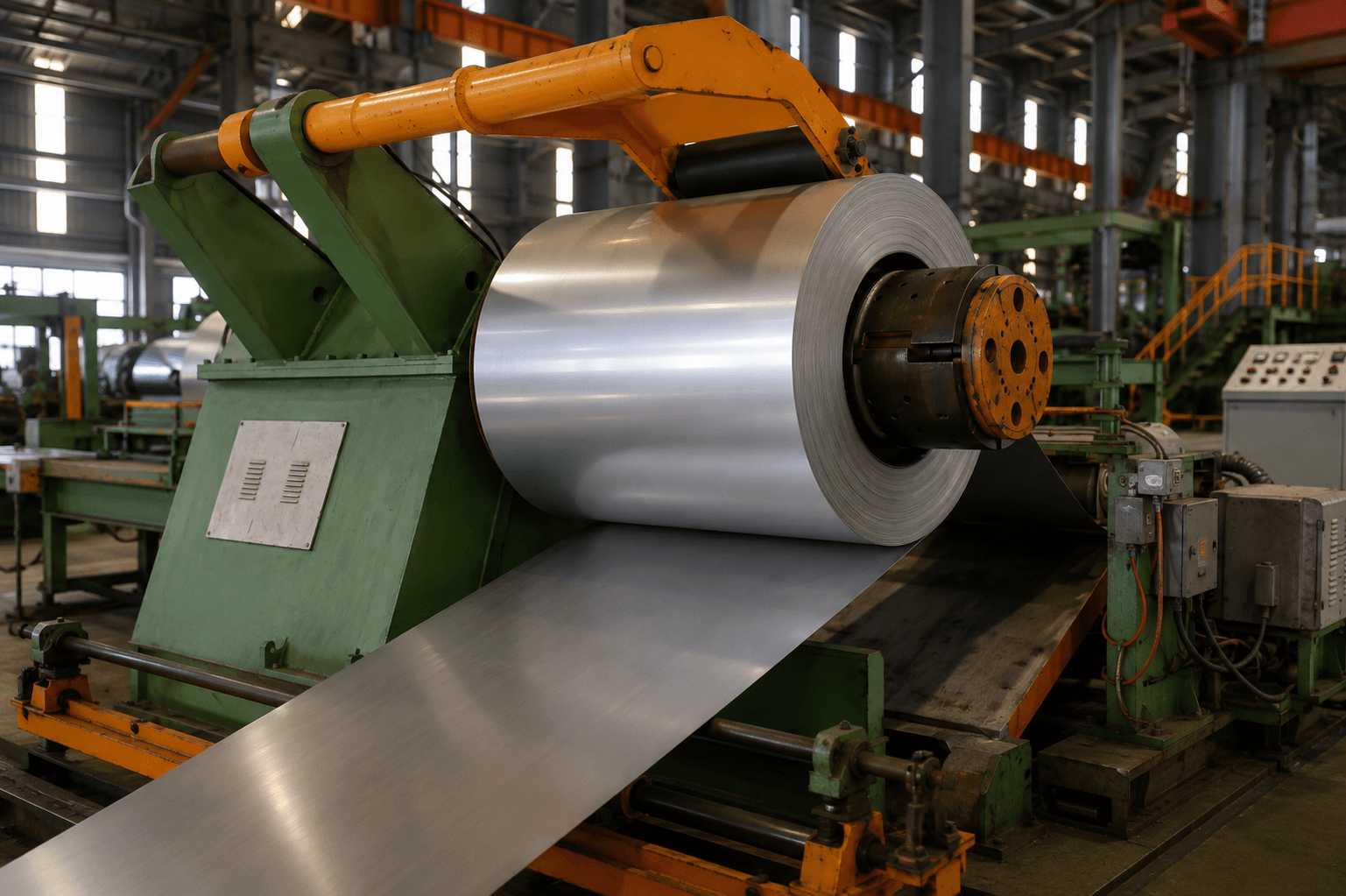

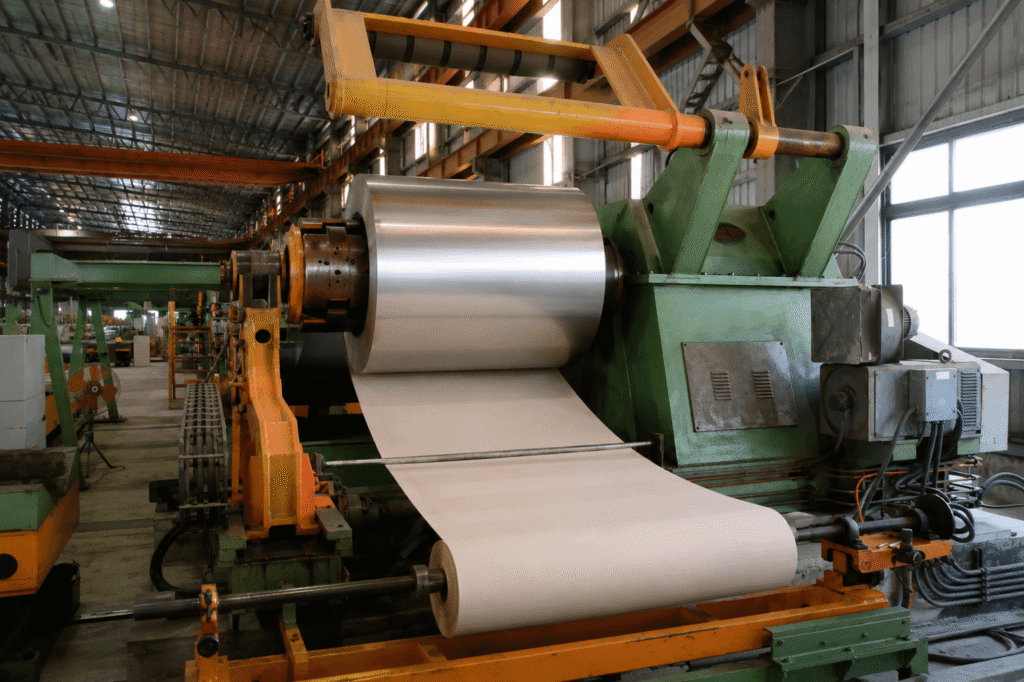

5FT 1550MM STAINLESS STEEL COIL/SHEET IMEAS POLISHING MACHINE

  • Thickness Range : 0.30mm~3.00 mm,Width Range: 914mm~1650mm
  • Polishing finish are No.3/No.4/No.5/HL/SB/STAIN and back pass.
  • Full set of machine from Italy IMEANS
  • Can polishing both in coil and sheet
  • Coil ID: 508mm / 610mm

Founded in 1980, Genn-Hann Stainless Steel Co., Ltd. is a professional precise cutting center for stainless steel materials with cutting, slitting and polishing technology as its core and customization size as its orientation. It has gained a good reputation in the industry. At present, the product line is divided into 200/300/400 series of stainless steel precision strip ,stainless steel coil (sheet), stainless steel CSP materials and stainless steel coating materials.
